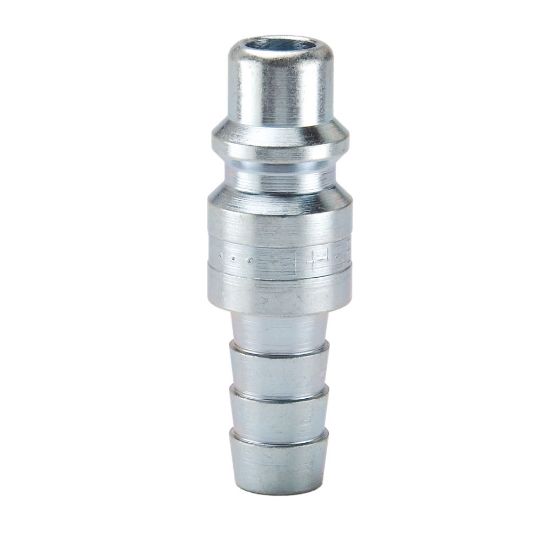

Parker H5F - Industrial Interchange Nipples, ISO 6150-B, Air Plug

Parker's general purpose, Industrial Interchange quick connect air nipples (plugs) are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

47 In Stock

Richmond, VA	15
Sumter, SC	13
Summerville, SC	4
Grovetown, GA	4
Fayetteville, NC	3
Ashland, VA	3
Knoxville, TN	3
Johnson City, TN	2

Partner Available:

356 In Stock

Brand Parker

Part No. H5F

$12.11

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Low pressure fluids and compressed air
Valve Type	Unvalved	Dimensional Weight	0.026658673061550762 lb
Coupling Half	Nipple	Specifications Met	A-A-59439 (MIL-C-4109F, ISO 6150-B)
Maximum Operating Pressure	300 psi	Plating Type	Zinc with clear trivalent chromate
Application	Air	Division	Quick Coupling Division
Body Material	Steel	Connection Hose I.D. (inch)	1/2
Connection Thread Size (inch)	na	Body Material	Steel
Connection Type	Hose barb	Body Size (inch)	1/2
Thread Style	na
