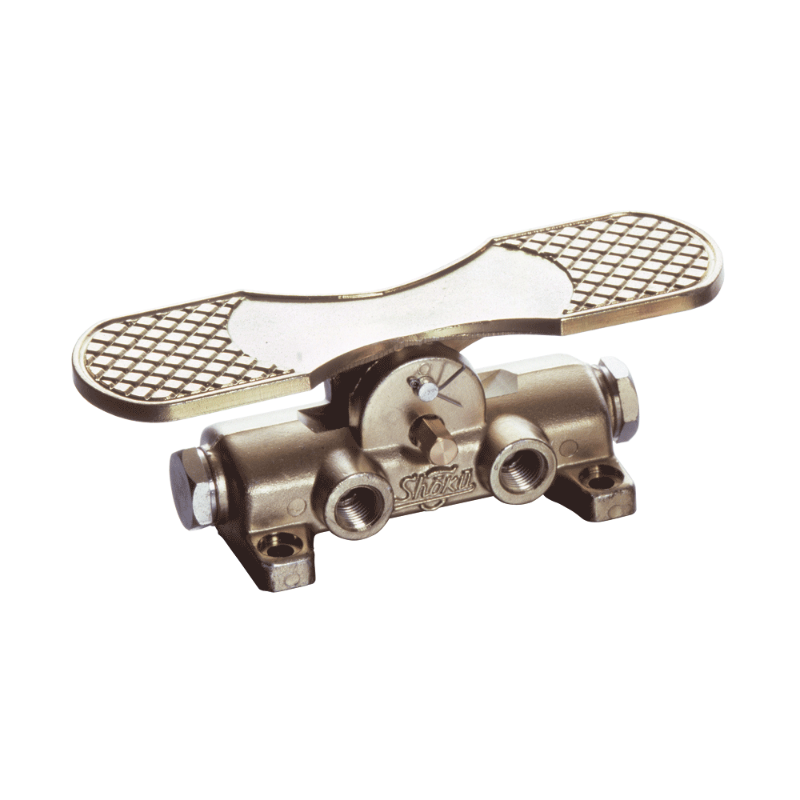

Parker H3FG00008590 - Foot Valve Model:4FN

4-port switching valve 4FN series for foot operation that is extremely durable with a robust structure. A wide variety of connection port sizes are available, from Rc1/4 to Rc3/4. (BSPT)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H3FG00008590

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Air	Weight	1.4 kg
Division	TAIYO Division	Operating Temperature	-10 to 50 °C (No freezing)(Ambient/Fluid temperature)
Lubricant	Unnecessary (but possible)	Installation	Free
Proof Pressure	1.5 MPa	Pressure Rating	0 to 1 MPa
Spool Type	4-port 3-position	Valve Type	Foot operation
Orifice Size	6.3mm²	Spool Position	3-position closed center(Detent)
Outlet Port Size	Rc1/4

Product resources

Literature and Reference Materials

Foot valve 4F 4FN 4PN catalog (PDF)
