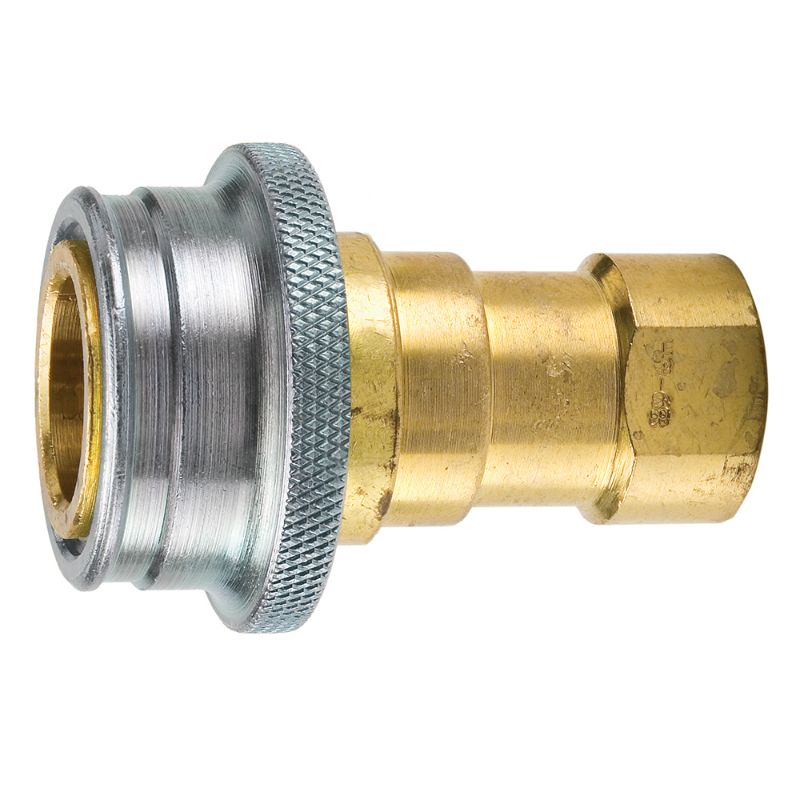

Parker H3-68 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H3-68

$84.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-54 °C
Flow Rate	6 Gal/min	Product Type	Manual Connect
Plating Type	n/a	Body Material	Steel
Valve Material	Brass	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division	Valve Type	Poppet
Dimensional Weight	0.12464028776978417 lb	Vacuum Pressure Rating	27.4 Inch-Hg
Hex Size	0.88 inch	Ball Material	Stainless Steel
Maximum Operating Temperature	400 °F	Body Material	BRASS
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
Coupling Half	Female Coupler	Seal Material	Ethylene Propylene
Connection Type	Female NPTF	Application	Steam
Maximum Operating Pressure	4000
