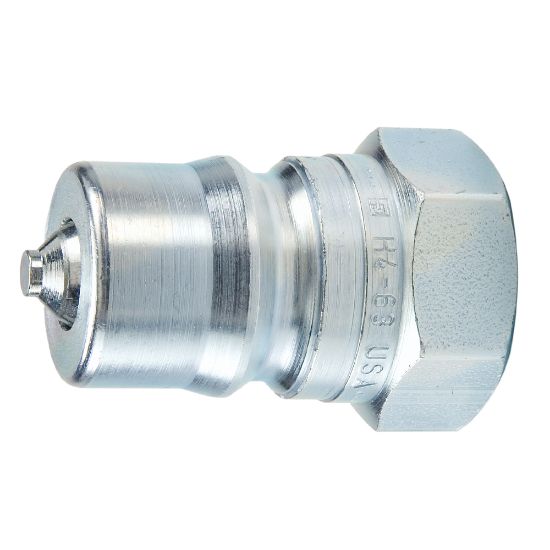

Parker H2-63-T6 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: Parker H2-63-T6 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: H2-63-T6
Price: 18.58 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:

3 In Stock

Ashland, VA

3 (Pickup only)

Partner Available:

77 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. H2-63-T6

$18.58/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	121 °C
Division	Quick Coupling Division	Plating Type	Zinc with Clear Trivalent Chromate
Product Type	Manual Connect	Minimum Operating Temperature	-40 °C
Body Material	Steel	Hex Size	0.88 inch
Valve Material	Steel	Specifications Met	ISO 7241-1 Series B
Flow Rate	3 Gal/min	Dimensional Weight	0.02670863309352518 lb
Vacuum Pressure Rating	-0.9 bar	Valve Type	Poppet
Maximum Operating Pressure	5000	Body Material	Steel
Seal Material	Nitrile	Connection Type	Female ORB
Body Size (inch)	1/4	Coupling Half	Male Nipple
Connection Thread Size (inch)	9/16 - 18	Application	General Purpose

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
