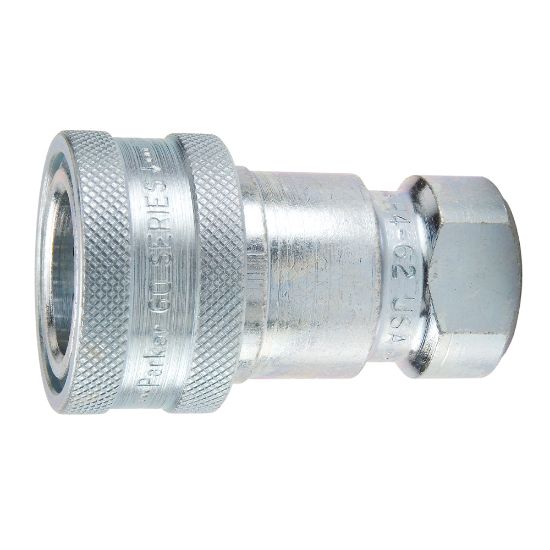

Parker H2-62Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. H2-62Y

$39.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	0.81 inch
Maximum Operating Temperature	400 °F	Ball Material	Steel
Flow Rate	11 L/min	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Minimum Operating Temperature	-26 °C
Body Material	Steel	Valve Material	Steel
Specifications Met	ISO 7241-1, series B	Division	Quick Coupling Division
Vacuum Pressure Rating	27.4 Inch-Hg	Valve Type	Poppet
Body Material	Steel	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Connection Type	Female NPTF
Body Size (inch)	1/4	Maximum Operating Pressure	5000
Application	General Purpose	Seal Material	Fluorocarbon

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
