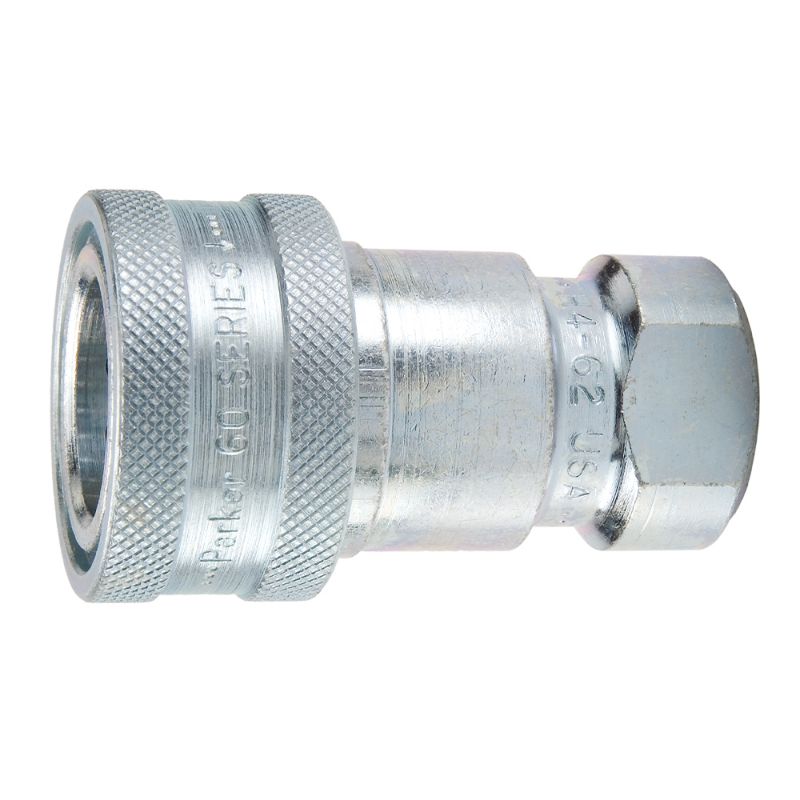

Parker H2-62-BSPP - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: Parker H2-62-BSPP - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: H2-62-BSPP
Price: 81.73 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:

4 In Stock

Norfolk, VA

Partner Available:

10 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. H2-62-BSPP

$81.73/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Material	Steel
Specifications Met	ISO 7241-1, series B	Valve Type	Poppet
Division	Quick Coupling Division	Vacuum Pressure Rating	-0.9 bar
Hex Size	0.81 inch	Ball Material	Steel
Maximum Operating Temperature	121 °C	Flow Rate	3 Gal/min
Minimum Operating Temperature	-40 °C	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Body Material	Steel
Connection Type	Female BSPP	Body Size (inch)	1/4
Application	General Purpose	Body Material	Steel
Maximum Operating Pressure	5000	Connection Thread Size (inch)	1/4 - 18
Seal Material	Nitrile	Coupling Half	Female Coupler

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
