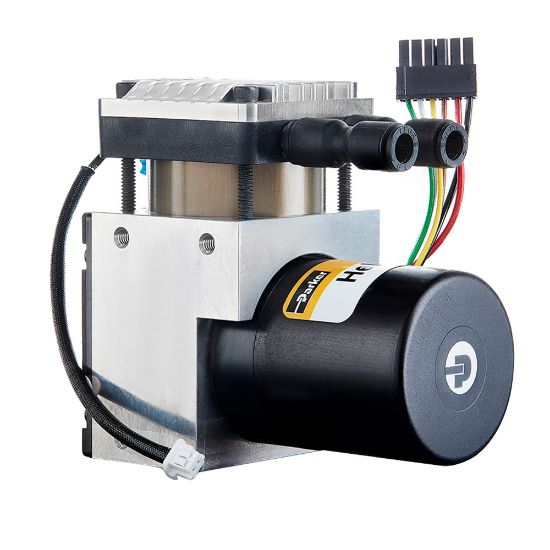

Parker H1R-080P24HV-02 - Helix Miniature Piston Pump (Gas)

Helix Miniature Piston Pump (Gas) Up to 100 PSIg (6.9 Bar) Pressure

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H1R-080P24HV-02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Pressure	6.2 bar	Vacuum Pressure Rating	0 mm-Hg
Division	Precision Fluidics Division	Height	3.32 inch
For Fluid Type	Gas	Body Material	PPS
Flow Rate	5 L/min	Technology	Rocking Piston
Displacement	0.5 inch3	Wetted Material	Stainless Steel 316
Operating Temperature	5 to 45 °C	Noise Level	45 dBA
Length	87.3 mm	Motor Type	Brushless DC
Weight	576 g	Width	49 mm
Maximum Continuous Pressure	4.1 bar	Maximum Continuous Vacuum Pressure	0 psi
Industry Application	Pneumatic Actuation	Operational Life	Application specific, contact Parker. Hours
Pump Size	Single Head	Pressure Rating (bar)	Up to 6.9
Motor Option	Brushless DC	Pump Type	Pressure
Free Flow Rate	Up to 5.0 L/min
