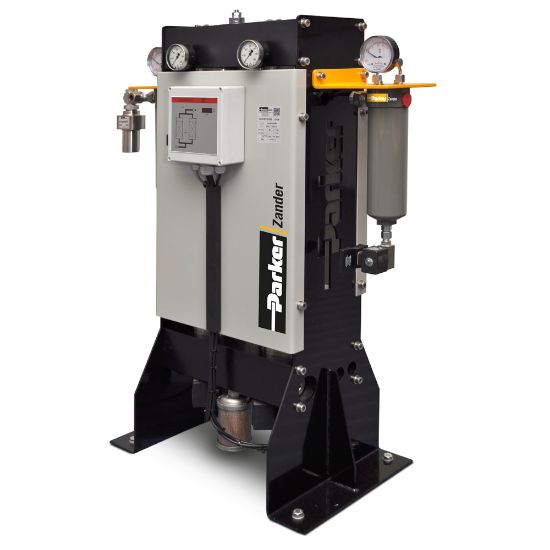

Parker H15/350D2-G115MT - HDK-MT High Pressure Compressed Air Dryers (up to 350 bar g)

For applications requiring high pressure compressed air or nitrogen gas up to 350 bar with volume flows of up to 1180m³/h and pressure dew points down to -40°C.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H15/350D2-G115MT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Controller Type	Multitronic with Dew Point Sensor	Maximum Ambient Temperature	50
Depth	370.0	Width	700.0
Compatible After Filter	GH7/350ZP/VV (Included)	Minimum Ambient Temperature	1
Minimum Operating Temperature	33.8	Weight	190
Division	Gas Separation and Filtration Division EMEA	Specifications Met	PED 97/23/EC Fluid Group II, TR
Connection Type	BSPP	Minimum Operating Pressure	100
Ingress Protection Rating	65	Compatible Prefilter	GH7/350XP (Included) GH7/350ZP (Required)
Maximum Operating Pressure	350	Pressure Dew Point	-20.0
Product Type	High Pressure Adsorption	Maximum Operating Temperature	55
Height	1050.0	Noise Level	95 to 115
Brand	Parker	Flow Rate	200 m³/h @ 7 barg (118 cfm @ 102 psig)
Port Size	½"	Electrical Requirements	115V 1ph 50/60Hz
