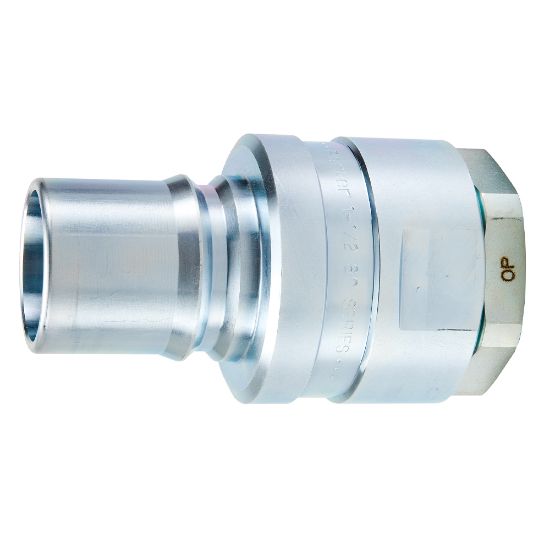

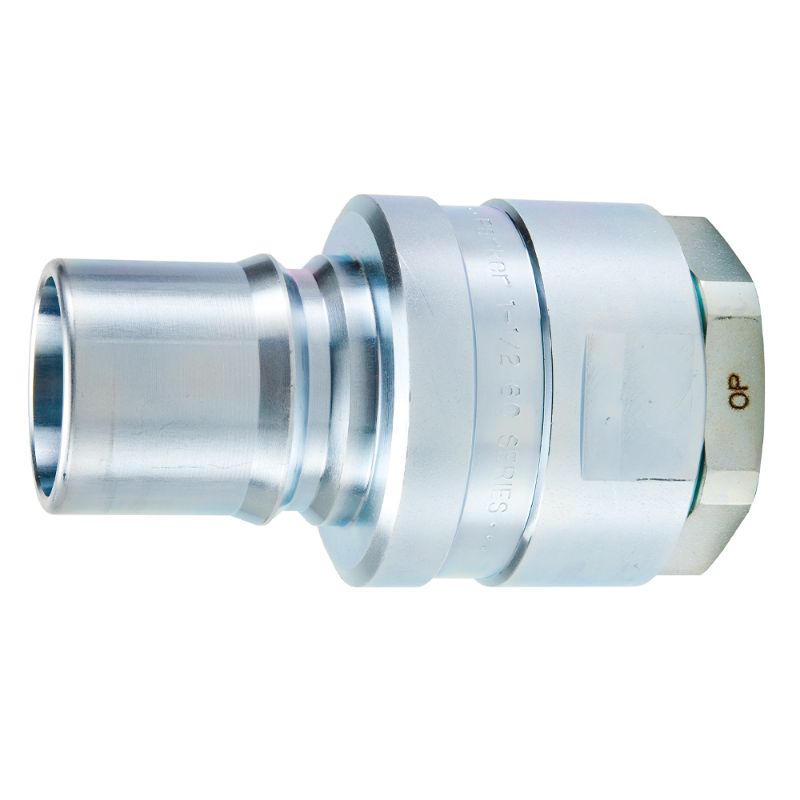

Picture of Parker H12-63L - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker H12-63L - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
Availability:
1 Limited Stock
Knoxville, TN1
Partner Available:Quote Required
Brand Parker
Part No. H12-63L
$404.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAValve MaterialSteel
Minimum Operating Temperature-40 °CMaximum Operating Temperature250 °F
Hex Size2.38 inchPlating TypeZinc with clear trivalent chromate
Product TypeManual ConnectValve TypePoppet
Vacuum Pressure Ratingn/aFlow Rate378 L/min
DivisionQuick Coupling DivisionSpecifications MetISO 7241-1 Series B
Body MaterialSteelMaximum Operating Pressure1500
Body Size (inch)1 1/2ApplicationGeneral Purpose
Body MaterialSteelCoupling HalfMale Nipple
Connection Thread Size (inch)1 1/4 - 11 1/2Seal MaterialNitrile
Connection TypeFemale NPTF
