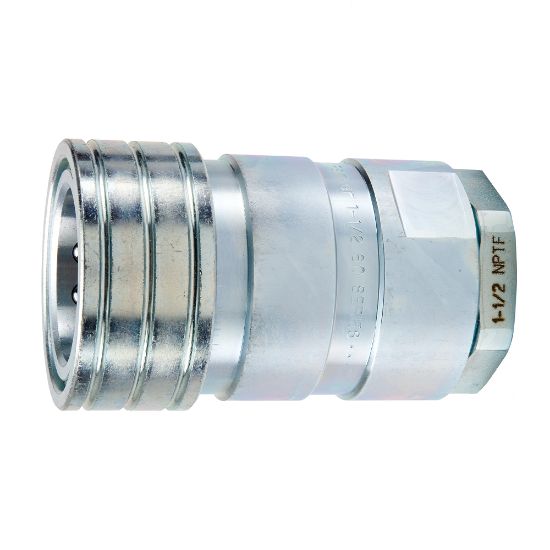

Parker H12-62L - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H12-62L

$496.70

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	100 Gal/min
Ball Material	Steel	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 7241-1 Series B
Valve Material	Steel	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Hex Size	2.38 inch
Valve Type	Poppet	Product Type	Manual Connect
Vacuum Pressure Rating	n/a	Body Material	Steel
Seal Material	Nitrile	Coupling Half	Female Coupler
Connection Type	Female NPTF	Maximum Operating Pressure	1500
Application	General Purpose	Body Size (inch)	1 1/2
Body Material	Steel	Connection Thread Size (inch)	1-1/4 - 11-1/2

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
