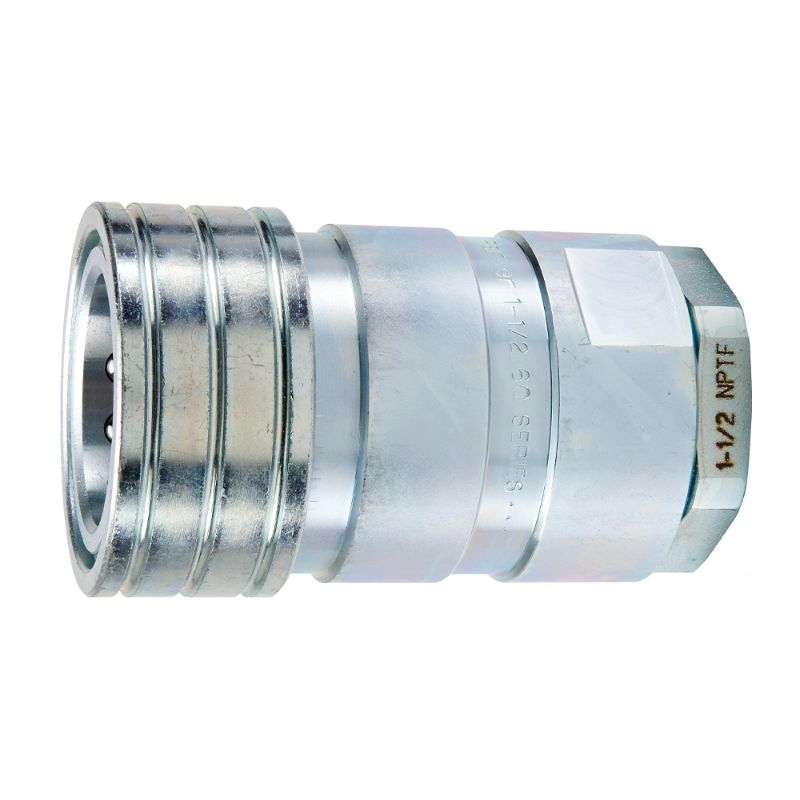

Parker H12-62-T24 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H12-62-T24

$624.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Vacuum Pressure Rating	n/a
Valve Type	Poppet	Body Material	Steel
Hex Size	2.38 inch	Ball Material	Steel
Specifications Met	ISO 7241-1 Series B	Flow Rate	378 L/min
Plating Type	Zinc with Clear Trivalent Chromate	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Valve Material	Steel
Maximum Operating Pressure	1500	Connection Thread Size (inch)	1-7/8 - 12
Body Size (inch)	1 1/2	Application	General Purpose
Coupling Half	Female Coupler	Body Material	Steel
Connection Type	Female ORB	Seal Material	Nitrile
