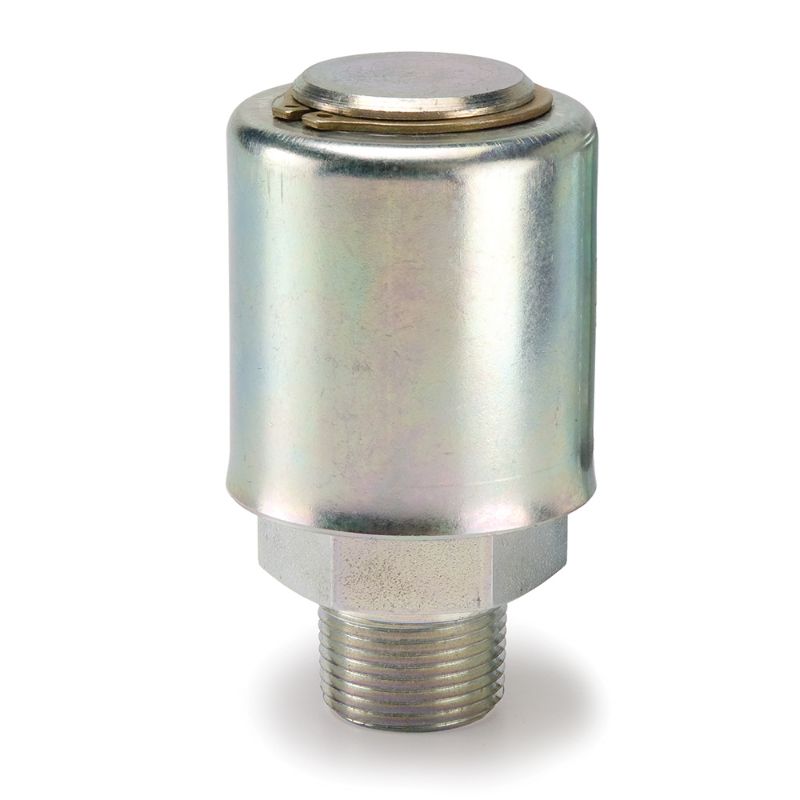

Parker H1-05-12MP - Hydraulic Pressure/Vacuum Relief Valves - H1 / HM1 Series

Parker's pressure/vacuum relief valves are designed for use with pressurized reservoirs to prevent pump cavitation by maintaining positive tank pressure and filtering incoming air.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. H1-05-12MP

$206.56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Mechanical
Division	Quick Coupling Division	Filter Type	Bronze, 10 micron
Body Material	Steel	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	60 psi	Pressure Control Range	5 psi
Minimum Operating Temperature	-40 °F	Seal Material	Elastomeric
Vacuum Relief Pressure	0.3 psi	Maximum Flow Rate	n/a
For Fluid Type	Hydraulic	Special Options	na
Cracking Pressure (psi)	5	Thread Type	Male NPTF
Connection Thread Size (inch)	3/4 - 14
