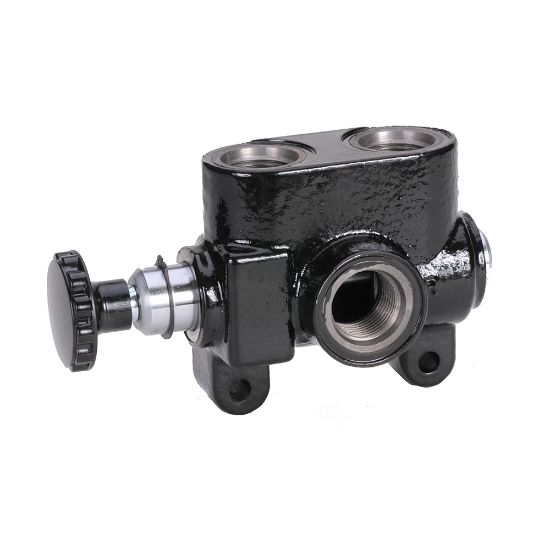

Parker H-12 - Selector Valve - S & H Series

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	5.4 lb	Maximum Flow Rate	30
Connection Size	#12	For Fluid Type	Hydraulic Oil
Actuation Type	Manual	Maximum Operating Temperature	+200 °F
Seal Material	Nitrile	Function	Selector Valve
Adjustment Mechanism	Knob	Body Material	High Strength Cast Iron
Connection Type	SAE	Division	Hydraulic Valve Systems Division
Maximum Operating Pressure	3000 psi	Minimum Operating Temperature	-40 °F
Port Size	SAE-12	Mounting	In-Line
Style	Float Selector
