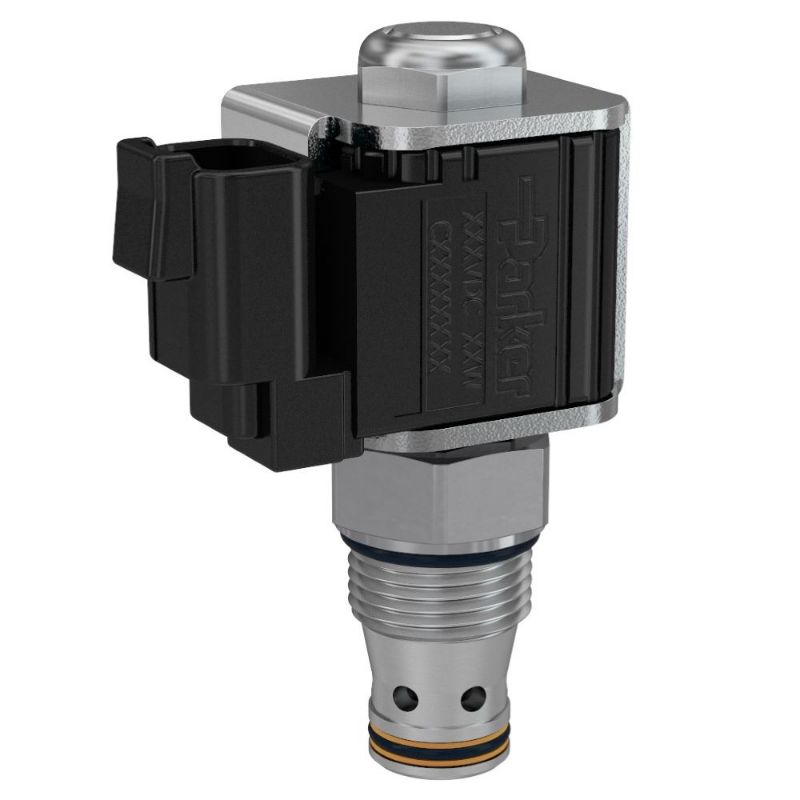

Parker GS048100N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS048100N

$228.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Material	All parts steel. All operating parts hardened steel
Bore Diameter	N/A	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.37 lb	Response Time	50 ms
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	5000 psi
ANSI Flange Class	N/A	Connection Size	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Specifications Met	N/A
Coil Nut Tightening Torque	3 lb-ft	Wire Mesh Screen Included	No
Seal Material	Nitrile	Actuation Type	Electrical
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Flow Direction	Bi-directional	Seat Material	Steel
Function	2-way	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Mounting Type	Screw in cartridge valve
Override Functionality	N/A	Maximum Operating Temperature	+250 °F
Coil Type	1/2" Super Coil High Watt (CCP)	Cavity Size	2R
Installation Torque	25 lb-ft	Application	Mobile Hydraulics, Industrial Hydraulics
Flow Rate	68 L/min	Operating Temperature	-30 to +250 °F
Operation Type	Solenoid operated	Body Material	N/A
Division	Hydraulic Systems Division	Minimum Operating Temperature	-34 °C
Flange Face Type	N/A	Maximum Flow Rate	68 L/min
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical
Wire Mesh Screen Included	No	Flow Rate	18 GAL/MIN, 68 L/MIN
