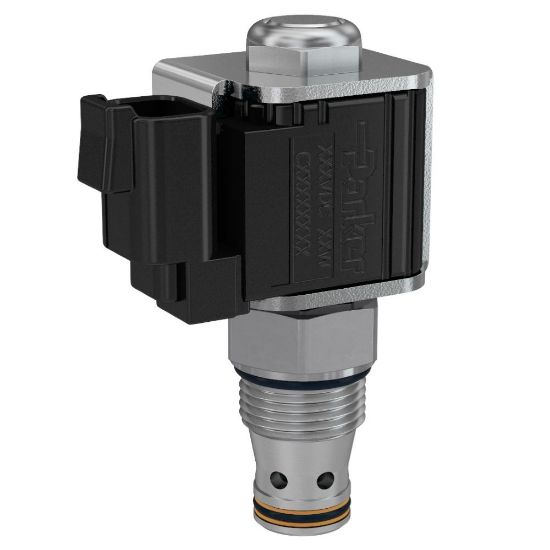

Picture of Parker GS048030N - 2 Way Poppet Type Bi-Directional Solenoid Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker GS048030N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. GS048030N
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileConnection Sizen/a
Specifications MetN/ABody Materialn/a
Minimum Operating Temperature-30DivisionHydraulic Systems Division
Leak Rate5Flow DirectionBi-directional
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Flow Rate18
Weight0.37Function2-Way
Maximum Operating Pressure3000Coil Nut Tightening Torque3
Maximum Inlet Pressure Rating3000ConfigurationNormally Closed
Actuation TypeElectrical, ManualFor Fluid TypeMineral-based or synthetic hydraulic fluids
Operation TypeSolenoid operated, Manually operatedValve MaterialAll parts steel. All operating parts hardened steel
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Wire Mesh Screen IncludedNo
Operating Temperature-30 to +250Maximum Operating Temperature+250
Mounting TypeScrew in cartridge valveInput Voltage85% of rated voltage at 72°F (20°C)
Response Time50Coil Type1/2" Super Coil Low Watt (CCS)
ApplicationMobile Hydraulics, Industrial HydraulicsBore DiameterN/A
Seat MaterialSteelFlange Face TypeN/A
ANSI Flange ClassN/AInstallation Torque25
Cavity Size2RMaximum Flow Rate18
Override FunctionalityCable InterfaceSeal MaterialNitrile
ConfigurationNormally ClosedMaximum Inlet Pressure Rating3000 PSI, 210 BAR
Actuation TypeElectrical, ManualWire Mesh Screen IncludedNo
Flow Rate18 GAL/MIN, 68 L/MIN
