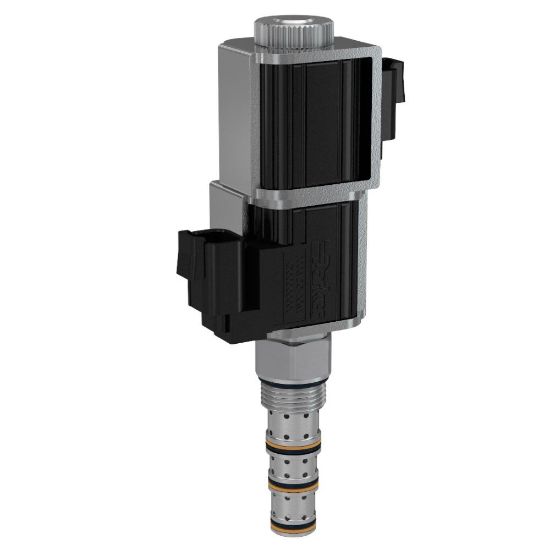

Parker GS045900ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS045900ND

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Override Functionality	n/a
Maximum Inlet Pressure Rating	5000 psi	Operation Type	Solenoid Operated
Installation Torque	25 lb-ft	Coil Nut Tightening Torque	4.1 Nm
Cavity Size	C10-4	Flow Rate	11 Gal/min
Maximum Flow Rate	42 L/min	Function	4-Way
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Open Center
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Type	5/8" Super Coil	Response Time	30-60 ms
Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min	Maximum Tank Pressure	3000 psi
Weight	0.58 lb	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Actuation Type	Electrical
Configuration	Open Center	Seal Type	Nitrile
