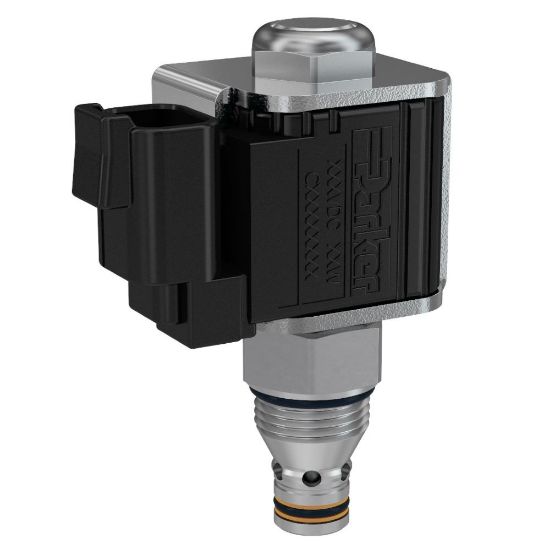

Parker GS028021N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS028021N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Connection Size	n/a
Specifications Met	N/A	Body Material	n/a
Weight	0.14 kg	Division	Hydraulic Systems Division
Flow Direction	Bi-directional	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Function	2-Way
Maximum Operating Pressure	210 bar	Cavity Size	C08-2
Wire Mesh Screen Included	Yes	Installation Torque	30 Nm
Coil Nut Tightening Torque	4.1 Nm	Maximum Flow Rate	9 Gal/min
Flow Rate	9 Gal/min	Maximum Inlet Pressure Rating	210 bar
Maximum Operating Temperature	+121 °C	Configuration	Normally Closed
Actuation Type	Electrical, Manual	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	40 ms
Coil Type	1/2" Super Coil Low Watt (CCS)	Application	Mobile Hydraulics, Industrial Hydraulics
Bore Diameter	N/A	Seat Material	Steel
Flange Face Type	N/A	ANSI Flange Class	N/A
Override Functionality	Non-Detented	Seal Material	Nitrile
Configuration	Normally Closed	Flow Rate	9 GAL/MIN, 34 L/MIN
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	Yes
