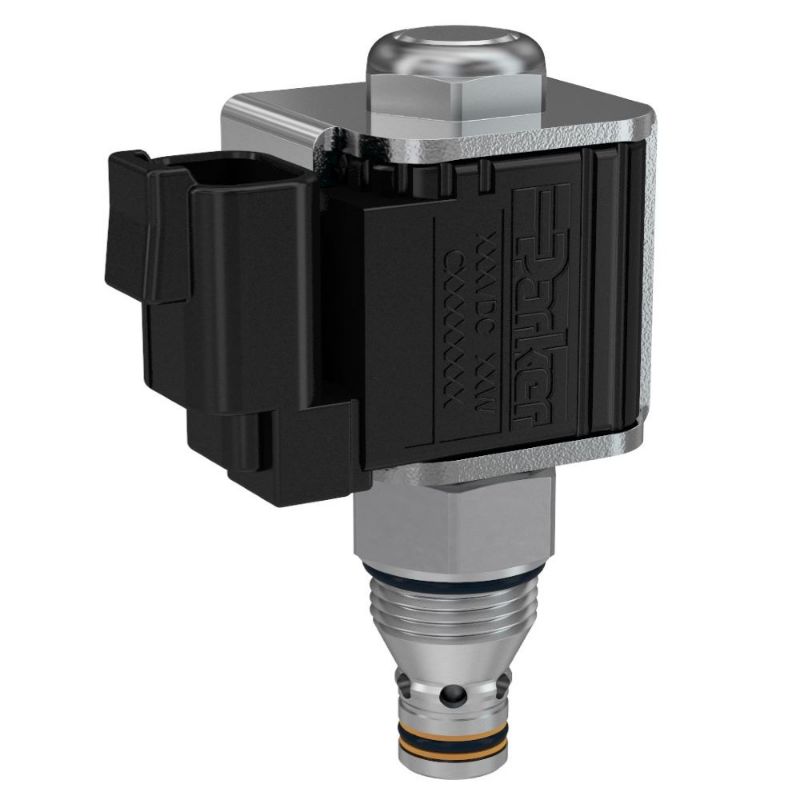

Parker GS028010N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS028010N

$246.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	34 L/min
Specifications Met	N/A	Installation Torque	30 Nm
Division	Hydraulic Systems Division	Minimum Operating Temperature	-30 °F
Application	Mobile Hydraulics, Industrial Hydraulics	Operating Temperature	-30 to +250 °F
Flange Face Type	N/A	Bore Diameter	N/A
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Pressure	210 bar
ANSI Flange Class	N/A	Flow Direction	Bi-directional
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Response Time	40 ms
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3000 psi
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Weight	0.14 kg	Coil Nut Tightening Torque	4.1 Nm
Connection Size	N/A	Seal Material	Nitrile
Override Functionality	Detented	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Cavity Size	C08-2	Maximum Operating Temperature	+121 °C
Seat Material	Steel	Configuration	Normally Closed
Function	2-way	Operation Type	Solenoid operated, Manually operated
Maximum Flow Rate	9 Gal/min	Leak Rate	5 drops/min
Body Material	N/A	Input Voltage	85% of rated voltage at 72°F (20°C) min
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil Low Watt (CCS)
Seal Material	Nitrile	Configuration	Normally Closed
Flow Rate	9 GAL/MIN, 34 L/MIN	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
