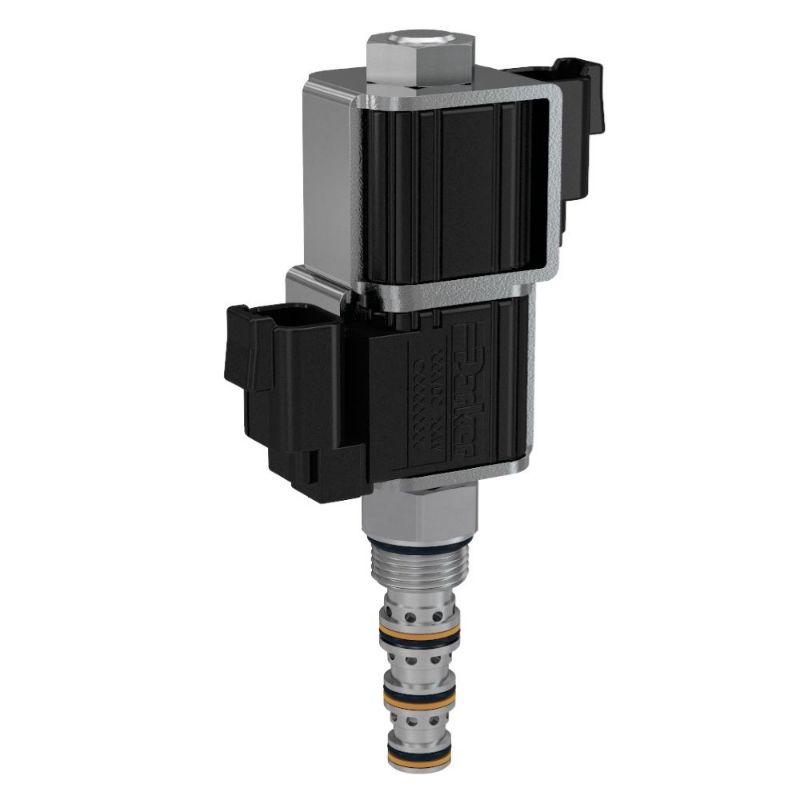

Parker GS025700N - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS025700N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Weight	0.18 kg	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	5000 psi
Operation Type	Solenoid Operated	Installation Torque	30 Nm
Coil Nut Tightening Torque	4.1 Nm	Cavity Size	C08-4
Function	4-Way	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Leak Rate	500 @ 5000 PSI (350 BAR) cm3/min	Configuration	Tandem Center
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Maximum Tank Pressure	210 bar	Maximum Flow Rate	3.5 Gal/min
Flow Rate	3.5 Gal/min	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Configuration	Tandem Center
Seal Type	Nitrile	Flow Rate	3.5 GAL/MIN, 13 L/MIN
