*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

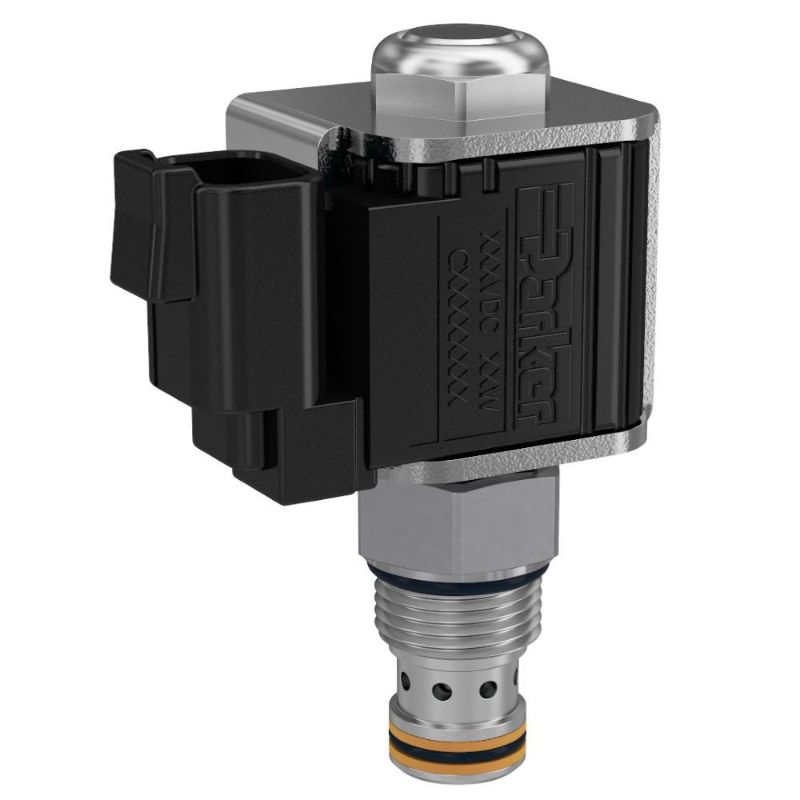

Parker GS022700N - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS022700N

$112.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	2-Way
Minimum Operating Temperature	-34 °C	Weight	0.31 kg
Override Functionality	n/a	Maximum Flow Rate	19 L/min
Flow Rate	19 L/min	Maximum Inlet Pressure Rating	350 bar
Operation Type	Solenoid Operated	Installation Torque	22 lb-ft
Coil Nut Tightening Torque	4.1 Nm	Cavity Size	C09-2
Maximum Operating Temperature	+250 °F	Configuration	Normally Open
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Leak Rate	82 CC/min @ 3000 PSI (210 BAR) cm3/min
Seal Material	Nitrile	Configuration	Normally Open
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Electrical	Wire Mesh Screen Included	No
