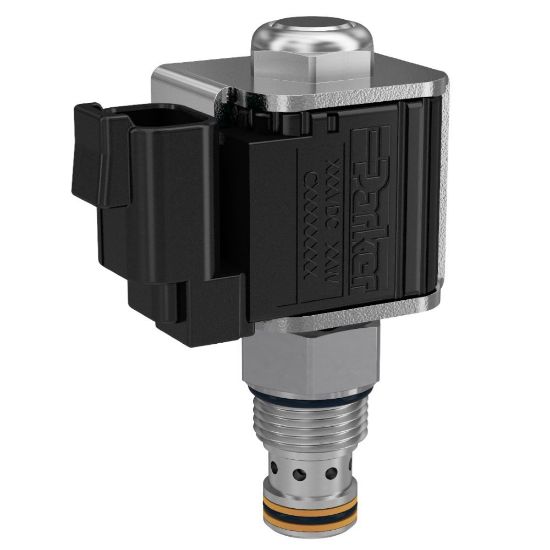

Parker GS022200V - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS022200V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Function	2-Way	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Maximum Flow Rate	5 Gal/min
Flow Rate	19 L/min	Maximum Inlet Pressure Rating	350 bar
Weight	0.14 lb	Operation Type	Solenoid Operated
Installation Torque	30 Nm	Coil Nut Tightening Torque	4.1 Nm
Cavity Size	C09-2	Maximum Operating Temperature	+204 °C
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Leak Rate	82 CC/min @ 3000 PSI (210 BAR) cm3/min	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	5 GAL/MIN, 19 L/MIN	Actuation Type	Electrical
Wire Mesh Screen Included	No
