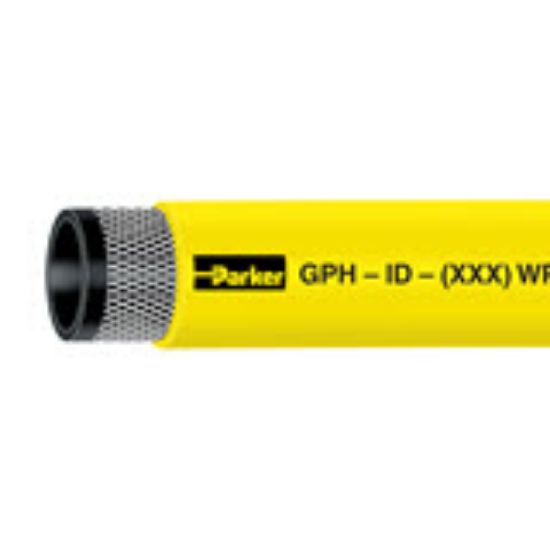

Parker GPH-6YEL500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GPH-6YEL500RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outside Diameter	0.640	Weight	0.12
Package Type	Coil	Division	Hose Products Division
Compatible Fitting	HY Series	Hose Inner Tube Material	Black
Cover Material	PVC	Length per Package	500
Cover Structure	Smooth	Hose Reinforcement Material	2 Plies of Textile
Maximum Operating Pressure	300	Application	PVC Hose
Minimum Bend Radius	1	Cover Color	Yellow
Media	Air	Maximum Operating Temperature	150
Inside Diameter	3/8	Vacuum Pressure Rating	23
Minimum Operating Temperature	-15	Maximum Working Pressure (psi)	300
Color	Yellow	Hose I.D. (inch)	3/8
