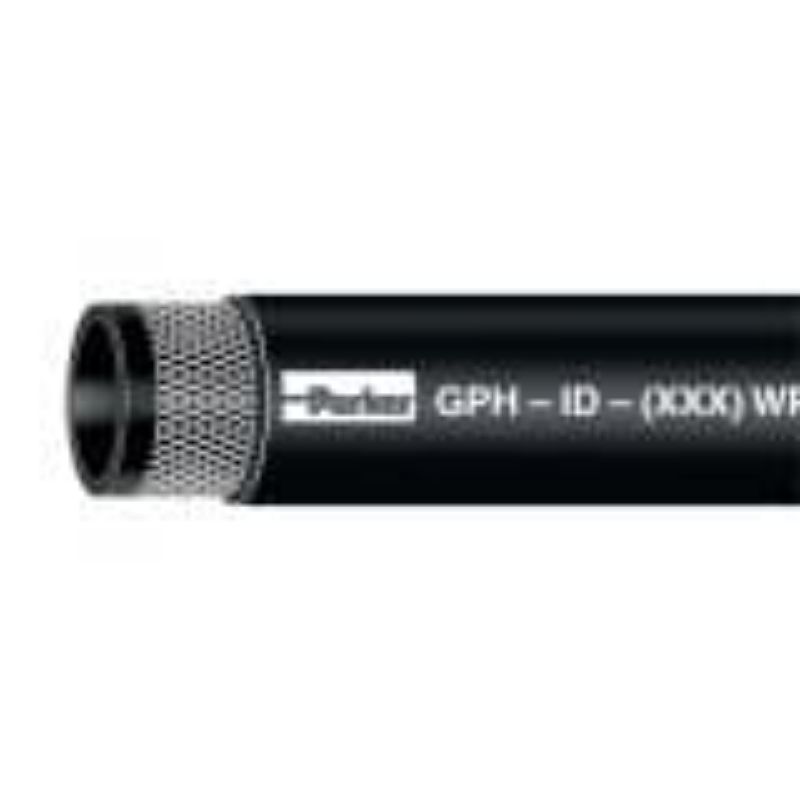

Parker GPH-6BLK500RL - PVC General Purpose Hose, Series GPH

Name: Parker GPH-6BLK500RL - PVC General Purpose Hose, Series GPH
SKU: GPH-6BLK500RL
Price: 2.28 USD
Availability: InStock

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

AFP Availability:

50 In Stock

Jacksonville, FL

Partner Available:

1114 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. GPH-6BLK500RL

$2.28/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Vacuum Pressure Rating	23 Inch-Hg
Outside Diameter	0.640 inch	Inside Diameter	9.5 mm
Maximum Operating Pressure	20.7 bar	Cover Structure	Smooth
Weight	0.05 kg	Maximum Operating Temperature	65 °C
Media	Lubricants (Oil Mist)	Division	Hose Products Division
Cover Color	Black	Minimum Operating Temperature	-15 °F
Compatible Fitting	HY Series	Package Type	Coil
Hose Inner Tube Material	Prime PVC	Hose Reinforcement Material	2 Plies of Textile
Length per Package	500 ft	Minimum Bend Radius	1 inch
Application	PVC Hose	Cover Material	PVC
Color	Black	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	300

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
