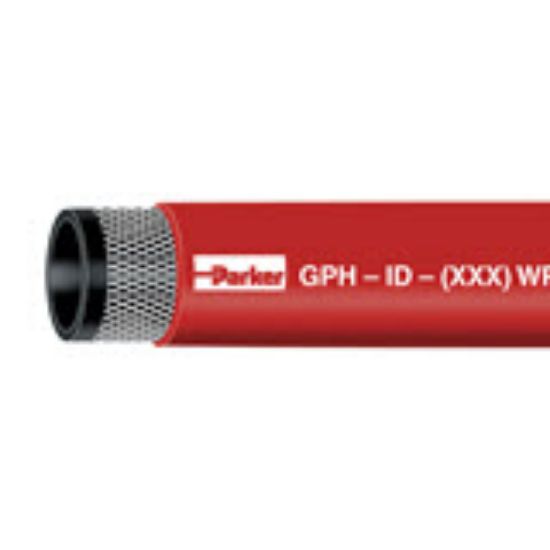

Parker GPH-4RED500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GPH-4RED500RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.04 kg	Division	Hose Products Division
Length per Package	500 ft	Hose Reinforcement Material	2 Plies of Textile
Minimum Operating Temperature	-26 °C	Package Type	Coil
Hose Inner Tube Material	Black	Maximum Operating Temperature	65 °C
Media	Air	Cover Color	Red
Vacuum Pressure Rating	23 Inch-Hg	Cover Structure	Smooth
Application	PVC Hose	Outside Diameter	0.510 inch
Compatible Fitting	HY Series	Inside Diameter	1/4 inch
Cover Material	PVC	Maximum Operating Pressure	20.7 bar
Minimum Bend Radius	0.8 inch	Maximum Working Pressure (psi)	300
Color	Red	Hose I.D. (inch)	1/4
