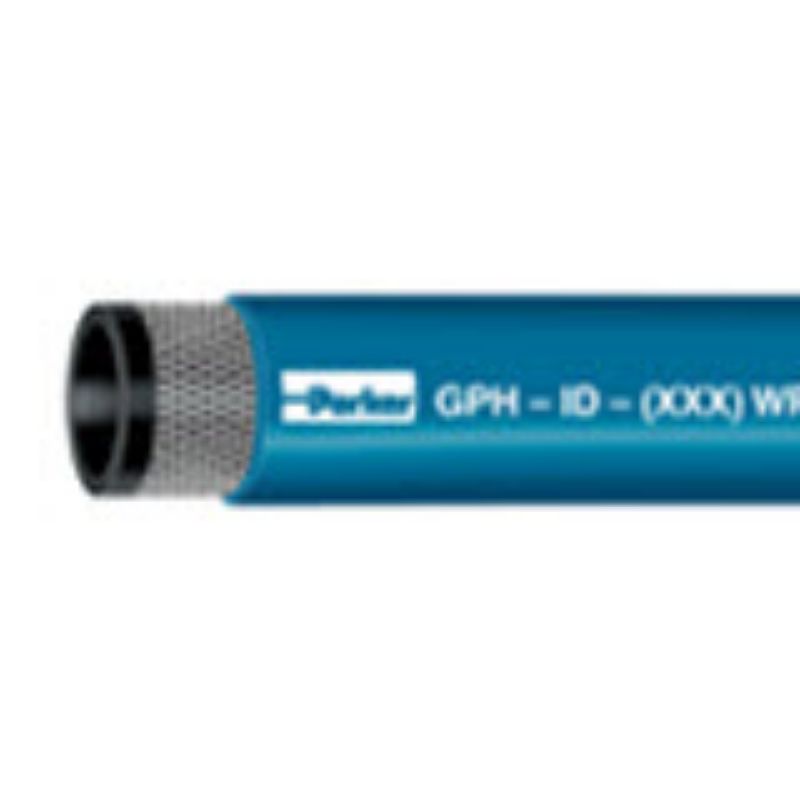

Parker GPH-4BLU500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

AFP Availability:	Quote Required
Partner Available:	174 In Stock

Brand Parker

Part No. GPH-4BLU500RL

$2.08/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	13 mm
Cover Structure	Smooth	Maximum Operating Pressure	20.7 bar
Length per Package	500 ft	Hose Reinforcement Material	2 Plies of Textile
Weight	0.08 lb	Cover Color	Blue
Maximum Operating Temperature	150 °F	Division	Hose Products Division
Inside Diameter	6.4 mm	Vacuum Pressure Rating	23 Inch-Hg
Hose Inner Tube Material	Prime PVC	Compatible Fitting	HY Series
Package Type	Coil	Media	Chemicals
Minimum Bend Radius	0.8 inch	Application	PVC Hose
Cover Material	PVC	Minimum Operating Temperature	-26 °C
Hose I.D. (inch)	1/4	Color	Blue
Maximum Working Pressure (psi)	300

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
