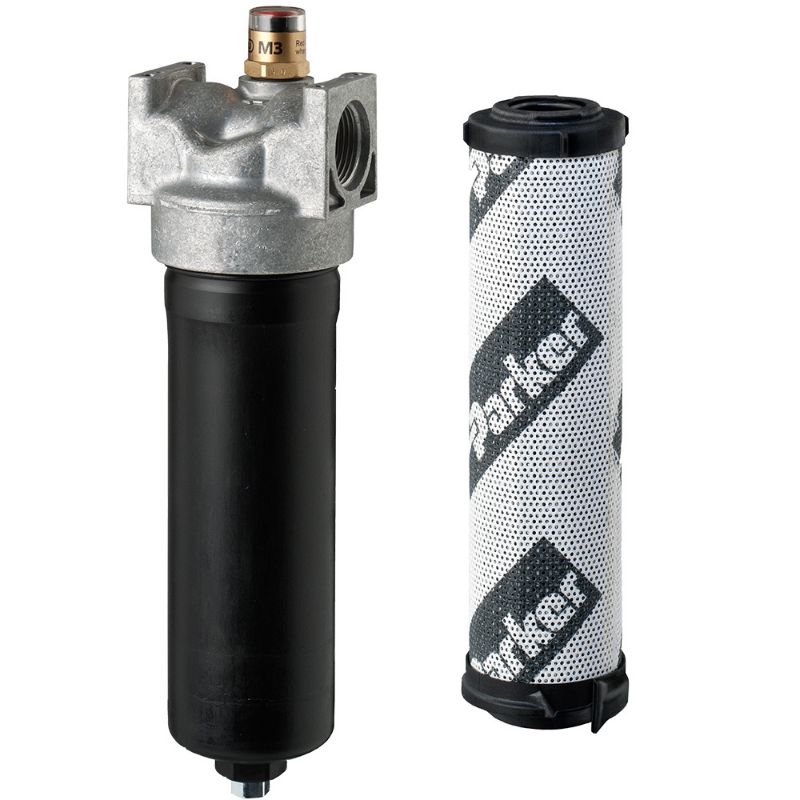

Parker GMF2110QIVPKG121 - Medium Pressure Inline Hydraulic Oil Filter – iProtect® GMF Series

The Parker GMF Series is a highly compact, environmentally friendly inline hydraulic oil filter that features a re-usable element core. Capable of flows up to 600 L/min (158 GPM). Maximum allowable operating pressure 70 bar (1,015 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GMF2110QIVPKG121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Hydraulic Oil Filters	For Fluid Type	Hydraulic Oil
Operating Pressure	70 bar	Technology	Hydraulics
Materials of Construction	Housing: Aluminium	Division	Hydraulic & Industrial Process Filtration Division EMEA
Product Series	iProtect® GMF	Indicator Pressure Setting	No Indicator
Division	Hydraulic & Industrial Process Filtration Division EMEA	Product Style	Inline Filters
Operating Temperature	-20 to 120 °C	Mounting Type	Inline
Brand	Parker	Application	Forwarders
Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.	Industry	Marine
Filter Element Type	10QI Quantumfiber™	Indicator Type	Plugged with steel plug
Bypass Valve Pressure Rating	3.5 bar	Flow Rate	0 to 55 l/min
Seal Material	Fluorelastomer	Options	Standard (Without drain port)
Connection Type	G3/4	Micron Rating	10 µm

Product resources

Literature and Reference Materials
