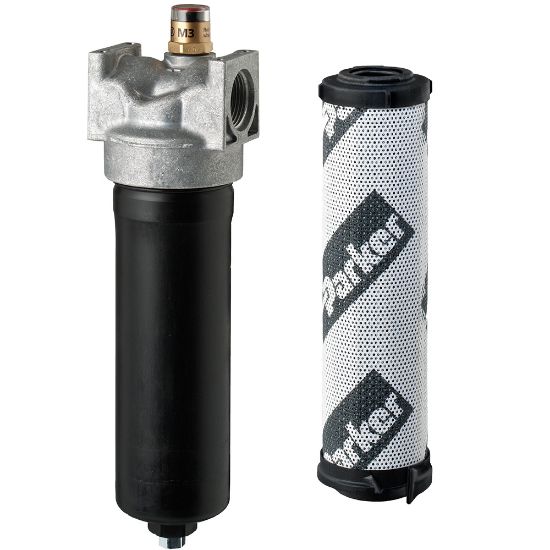

Parker GMF2105QIVM3KG161 - Medium Pressure Inline Hydraulic Oil Filter – iProtect® GMF Series

The Parker GMF Series is a highly compact, environmentally friendly inline hydraulic oil filter that features a re-usable element core. Capable of flows up to 600 L/min (158 GPM). Maximum allowable operating pressure 70 bar (1,015 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GMF2105QIVM3KG161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Hydraulic Oil Filters	For Fluid Type	Hydraulic Oil
Indicator Pressure Setting	2.5	Application	Deck and Mobile Cranes
Materials of Construction	Housing: Aluminium	Operating Pressure	70
Technology	Filtration	Operating Temperature	-20 to 120
Division	Hydraulic & Industrial Process Filtration Division EMEA	Product Style	Inline Filters
Industry	Agriculture	Mounting Type	Inline
Brand	Parker	Division	Hydraulic & Industrial Process Filtration Division EMEA
Product Series	iProtect® GMF	Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.
Flow Rate	0 to 40 l/min	Filter Element Type	05QI Quantumfiber™
Indicator Type	Visual indicator	Bypass Valve Pressure Rating	3.5 bar
Connection Type	G1	Micron Rating	5 µm
Seal Material	Fluorelastomer	Options	Standard (Without drain port)

Product resources

Literature and Reference Materials
