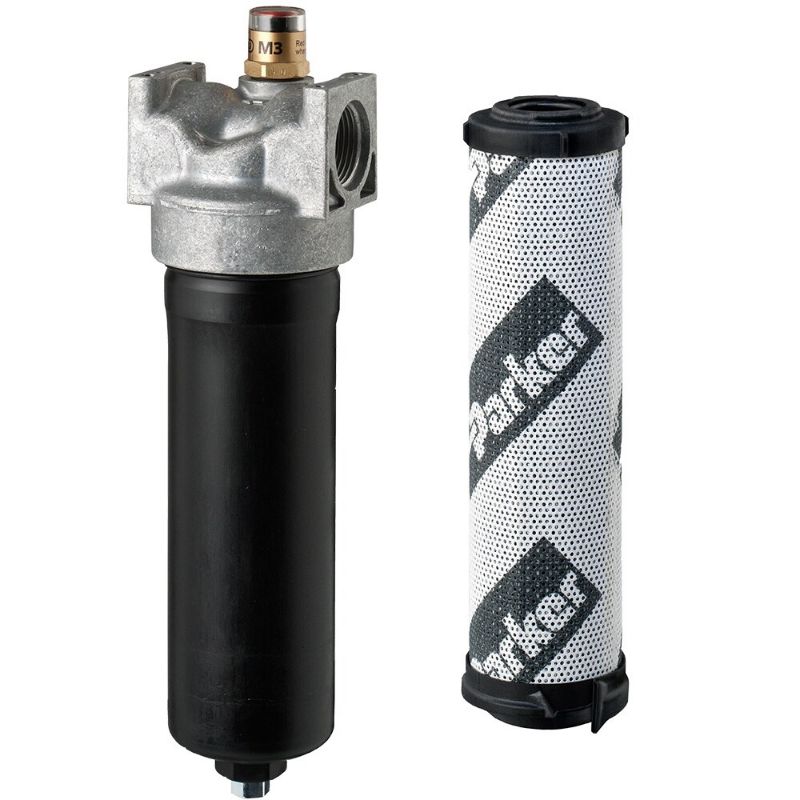

Parker GMF2102QIBPKG161 - Medium Pressure Inline Hydraulic Oil Filter – iProtect® GMF Series

The Parker GMF Series is a highly compact, environmentally friendly inline hydraulic oil filter that features a re-usable element core. Capable of flows up to 600 L/min (158 GPM). Maximum allowable operating pressure 70 bar (1,015 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GMF2102QIBPKG161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Hydraulic Oil Filters	For Fluid Type	Hydraulic Oil
Technology	Hydraulics	Operating Pressure	70 bar
Product Series	iProtect® GMF	Materials of Construction	Housing: Aluminium
Operating Temperature	-40 to 100 °C	Indicator Pressure Setting	No Indicator
Mounting Type	Inline	Brand	Parker
Division	Hydraulic & Industrial Process Filtration Division EMEA	Product Style	Inline Filters
Division	Hydraulic & Industrial Process Filtration Division EMEA	Industry	Agriculture
Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.	Application	Wheeled Loaders
Connection Type	G1	Flow Rate	0 to 30 l/min
Micron Rating	2 µm	Indicator Type	Plugged with steel plug
Seal Material	Nitrile	Bypass Valve Pressure Rating	3.5 bar
Filter Element Type	02QI Quantumfiber™	Options	Standard (Without drain port)
