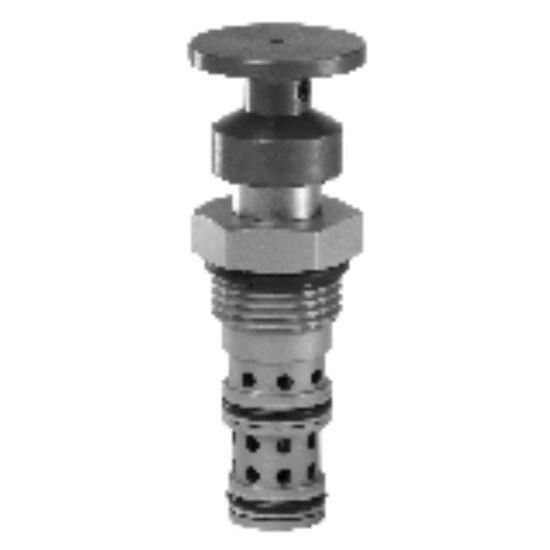

Parker GM02331N - 2 Position, 3 Way Pull to Shift Spool Type Manual Valve

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GM02331N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	5
Weight	0.2	Operation Type	Manual
Maximum Flow Rate	5	Maximum Inlet Pressure Rating	5000
Installation Torque	22	Cavity Size	C08-3
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-30 to +250
Maximum Operating Temperature	+250	Function	Spool Type
Actuation Type	Knob	Maximum Tank Pressure	500
Detents	Yes	Force	11
Leak Rate	160 @ 5000 PSI (350 BAR)	Configuration	2 position, 3 way selector
Seal Material	Nitrile	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Knob	Configuration	2 position, 3 way selector
