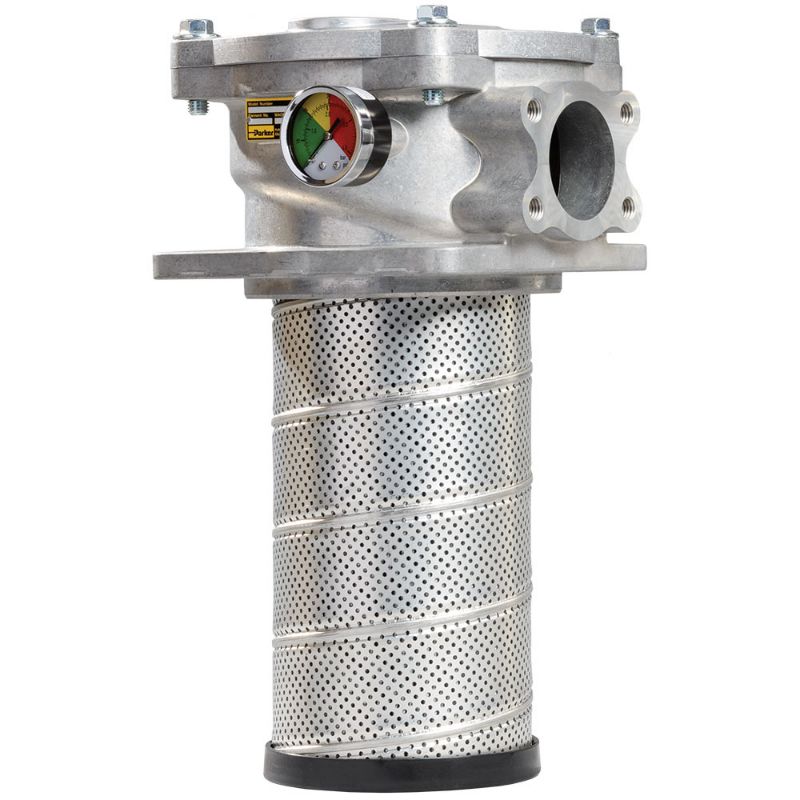

Parker GLF4105QBGI2Y401 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF4105QBGI2Y401

$751.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	None
Indicator Type	Tri-color Pressure Gauge	Mounting Type	Tank Mounted
Indicator Pressure Setting	1.9 bar	Maximum Operating Temperature	107 °C
Housing Material	Cast Aluminum Alloy	Flow Rate	195 Gal/min
Bypass Valve Pressure Rating	2.4 bar	Compatible Element	946432Q
Weight	4.08 kg	Port Type	Dual SAE Code 61 Flange Face<br/>Ports (1x2 1/2” port, 1x2” port)
Seal Material	Nitrile	Pressure Rating	10 bar
Filter Element Type	05Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Options	None	Filter Element	05Q Microglass
Bypass Valve (psi)	35	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual SAE Code 61 Flange Face Ports (1x2 1/2” port, 1x2” port)	Flow Rate (gpm)	195
