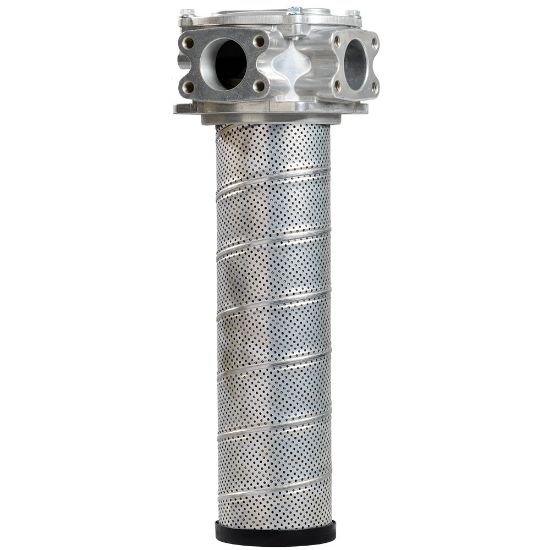

Parker GLF3220QVSI2Y321 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3220QVSI2Y321

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Options	None	Seal Material	Fluorocarbon
Filter Element Type	20Q Microglass	Mounting Type	Tank Mounted
Pressure Rating	150	Weight	8
Maximum Operating Temperature	275	Bypass Valve Pressure Rating	35
Indicator Type	Pressure Switch	Housing Material	Cast Aluminum Alloy
Indicator Pressure Setting	28	Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
Flow Rate	870	Compatible Element	945913Q
Seal Material	Fluorocarbon	Options	None
Filter Element	20Q Microglass	Bypass Valve (psi)	35
Indicator Type	Pressure Switch	Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
Flow Rate (gpm)	230
