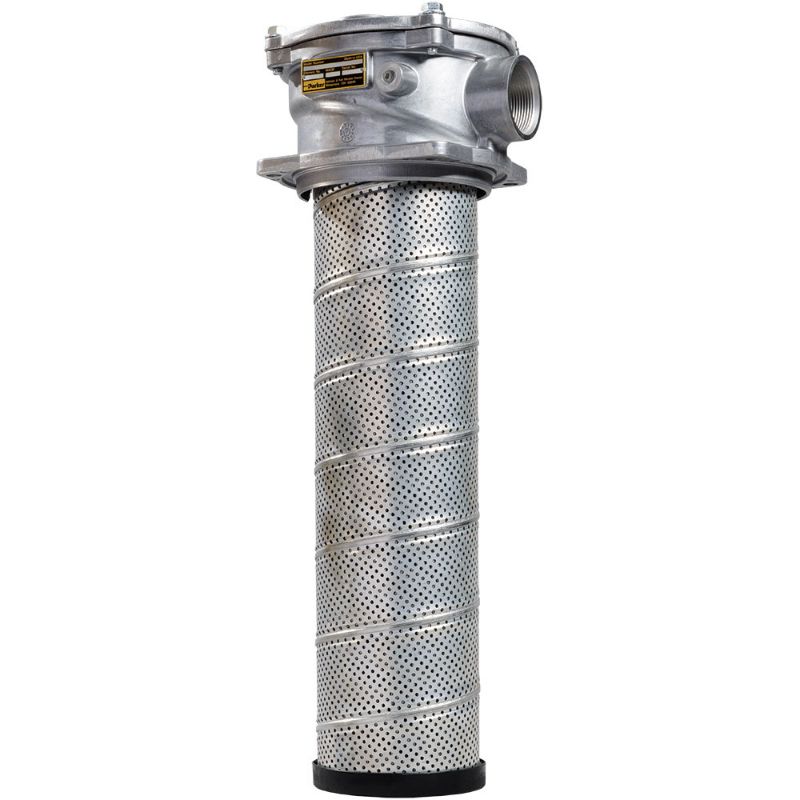

Parker GLF3210QVSI2S241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3210QVSI2S241

$657.90

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Seal Material	Fluorocarbon	Filter Element Type	Cartridge
Mounting Type	Tank Mounted	Maximum Operating Temperature	275 °F
Pressure Rating	150 psi	Bypass Valve Pressure Rating	2.4 bar
Indicator Type	Pressure Switch	Housing Material	Cast Aluminum Alloy
Port Type	Dual SAE-24	Indicator Pressure Setting	1.9 bar
Weight	3.63 kg	Flow Rate	851 L/min
Compatible Element	945912Q	Seal Material	Fluorocarbon
Options	None	Filter Element	10Q Microglass
Bypass Valve (psi)	35	Indicator Type	Pressure Switch
Port Connection Type	Dual SAE-24	Flow Rate (gpm)	225

Product resources

Literature and Reference Materials
