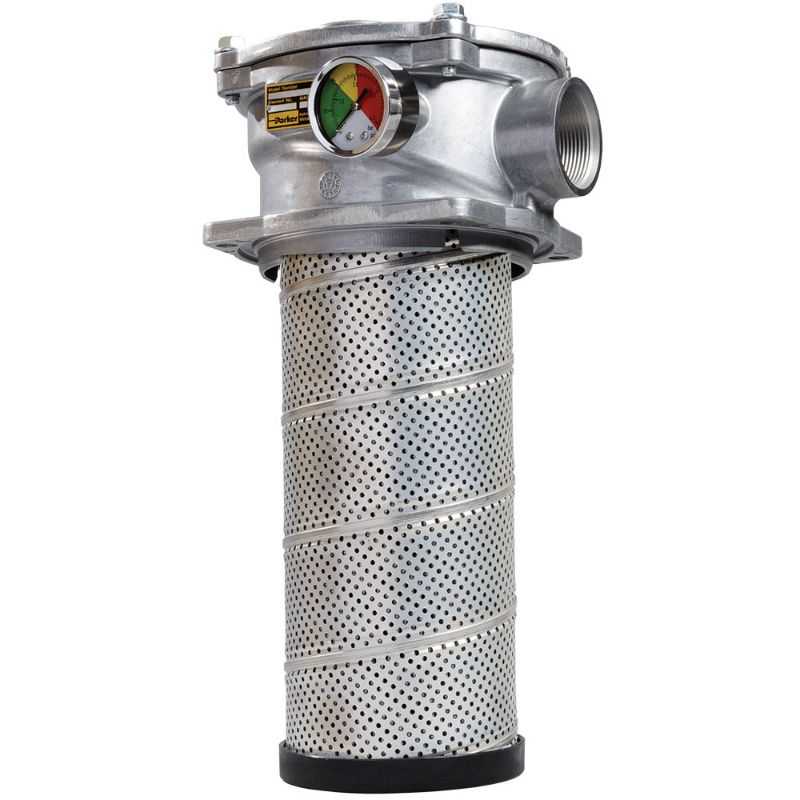

Parker GLF3110QBGIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3110QBGIS241

$415.67

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Options	None	Filter Element Type	Cartridge
Maximum Operating Temperature	107 °C	Mounting Type	Tank Mounted
Port Type	SAE-24	Pressure Rating	150 psi
Bypass Valve Pressure Rating	2.4 bar	Indicator Type	Tri-color Pressure Gauge
Housing Material	Cast Aluminum Alloy	Weight	3.18 kg
Indicator Pressure Setting	1.9 bar	Flow Rate	567 L/min
Compatible Element	945896Q	Seal Material	Nitrile
Options	None	Filter Element	10Q Microglass
Port Connection Type	SAE-24	Flow Rate (gpm)	150
Bypass Valve (psi)	35	Indicator Type	Tri-color Pressure Gauge
