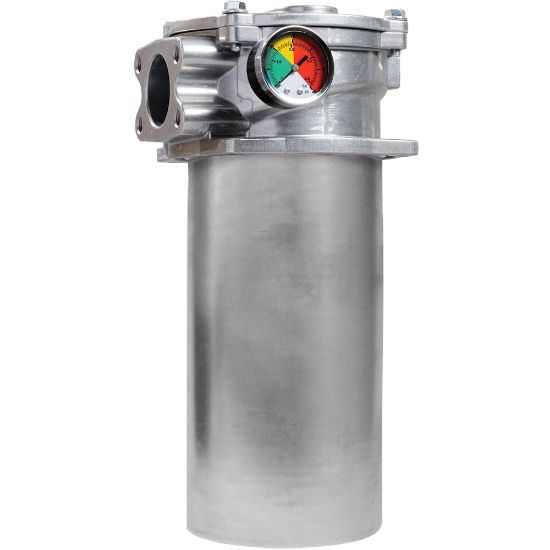

Parker GLF3102QBGI2Y32MD - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3102QBGI2Y32MD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	02Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Mounting Type	Tank Mounted	Pressure Rating	150
Maximum Operating Temperature	225	Weight	7
Bypass Valve Pressure Rating	35	Indicator Type	Tri-color Pressure Gauge
Housing Material	Cast Aluminum Alloy	Options	Magnets and Drop Tube
Indicator Pressure Setting	28	Flow Rate	378
Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Compatible Element	945894Q
Seal Material	Nitrile	Filter Element	02Q Microglass
Flow Rate (gpm)	100	Bypass Valve (psi)	35
Options	Magnets and Drop Tube	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
