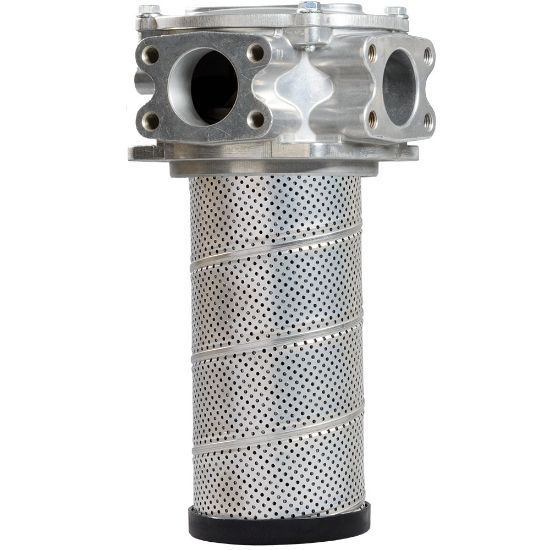

Parker GLF3102QBGI2Y321 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3102QBGI2Y321

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	02Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Options	None	Mounting Type	Tank Mounted
Pressure Rating	150	Maximum Operating Temperature	225
Weight	7	Bypass Valve Pressure Rating	35
Indicator Type	Tri-color Pressure Gauge	Housing Material	Cast Aluminum Alloy
Indicator Pressure Setting	28	Flow Rate	378
Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Compatible Element	945894Q
Seal Material	Nitrile	Options	None
Filter Element	02Q Microglass	Flow Rate (gpm)	100
Bypass Valve (psi)	35	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)
