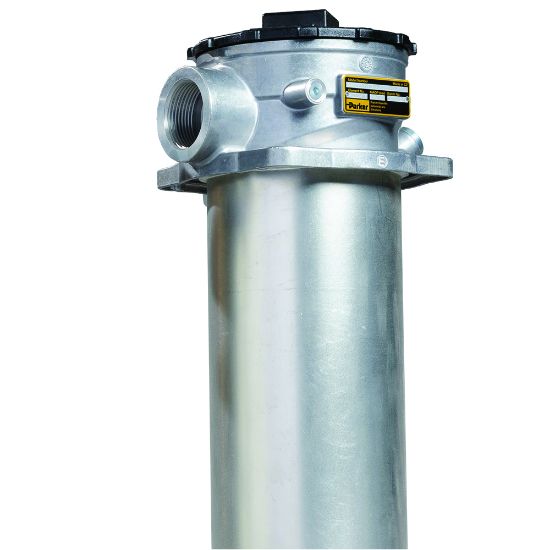

Parker GLF2102QBPIS16MD - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF2102QBPIS16MD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	02Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Mounting Type	Tank Mounted	Pressure Rating	150
Maximum Operating Temperature	225	Port Type	SAE-16
Indicator Type	Port Plugged	Weight	4
Bypass Valve Pressure Rating	35	Housing Material	Cast Aluminum Alloy
Options	Magnets and Drop Tube	Flow Rate	208
Compatible Element	946431Q	Indicator Pressure Setting	28
Seal Material	Nitrile	Filter Element	02Q Microglass
Port Connection Type	SAE-16	Indicator Type	Port plugged
Bypass Valve (psi)	35	Options	Magnets and Drop Tube
Flow Rate (gpm)	55

Product resources

Literature and Reference Materials
