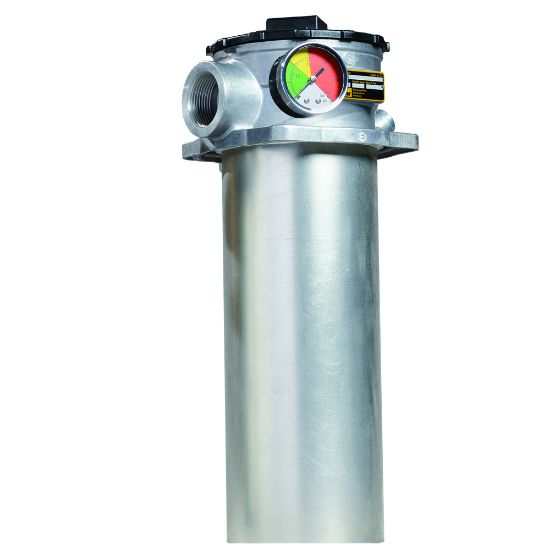

Parker GLF2102QBGI2S24MD - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF2102QBGI2S24MD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	Cartridge
Mounting Type	Tank Mounted	Maximum Operating Temperature	225 °F
Pressure Rating	150 psi	Flow Rate	265 L/min
Bypass Valve Pressure Rating	35 psi	Indicator Type	Tri-color Pressure Gauge
Housing Material	Cast Aluminum Alloy	Weight	1.81 kg
Options	Magnets and Drop Tube	Port Type	Dual SAE-24
Compatible Element	946431Q	Indicator Pressure Setting	28 psi
Seal Material	Nitrile	Filter Element	02Q Microglass
Bypass Valve (psi)	35	Options	Magnets and Drop Tube
Flow Rate (gpm)	55	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual SAE-24
