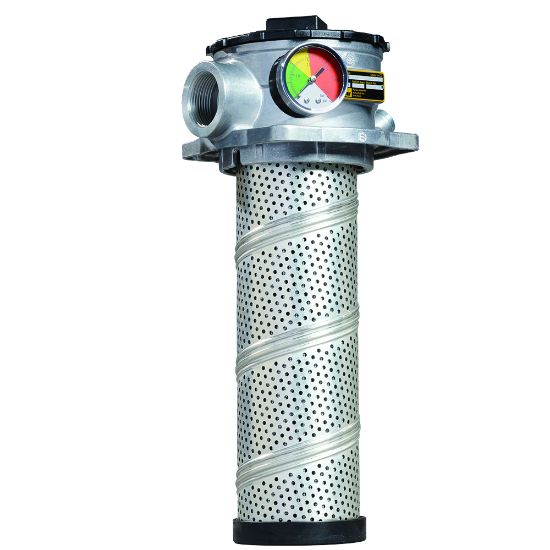

Parker GLF2102QBGI2S241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF2102QBGI2S241

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	02Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Options	None	Mounting Type	Tank Mounted
Maximum Operating Temperature	225 °F	Weight	4 lb
Pressure Rating	150 psi	Bypass Valve Pressure Rating	35 psi
Flow Rate	70 Gal/min	Indicator Type	Tri-color Pressure Gauge
Housing Material	Cast Aluminum Alloy	Port Type	Dual SAE-24
Compatible Element	946431Q	Indicator Pressure Setting	1.9 bar
Seal Material	Nitrile	Options	None
Filter Element	02Q Microglass	Bypass Valve (psi)	35
Flow Rate (gpm)	55	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual SAE-24

Product resources

Literature and Reference Materials
