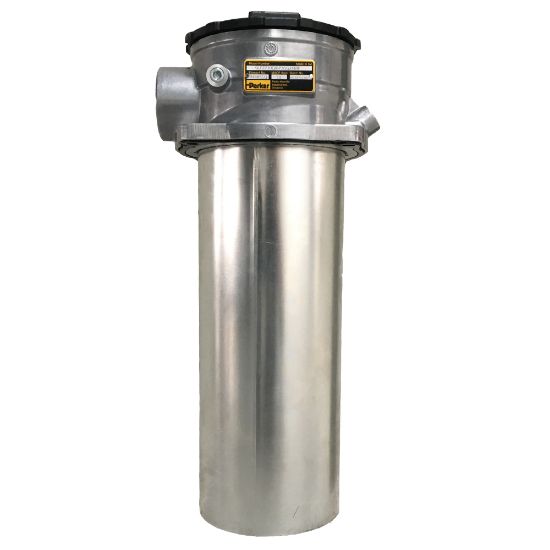

Parker GLF1105QIBP2GG16N - Tank Top Return Line Hydraulic Oil Filter – iProtect® GLF Series

The Parker GLF Series is a tank top return line hydraulic oil filter designed for high flow and long life between element change-outs. Maximum allowable flow 1700 L/min (374 GPM). Maximum allowable operating pressure 10.3 bar (150 psi) static.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF1105QIBP2GG16N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Seal Material	Nitrile
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Technology	Hydraulics	Micron Rating	5
For Fluid Type	Hydraulic Oil	Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.
Mounting Type	Tank Mounted	Housing Material	Aluminium
Industry	Mining	Operating Pressure	150
Product Type	Hydraulic Oil Filter	Application	Harvesters
Operating Temperature	-40 to 110	Width	133
Height	204	Product Series	GLF iProtect Series
Length	142	Indicator Type	None / Both Indicator Ports Plugged
Bypass Valve Pressure Rating	24.6	Options	No options
Flow Rate	0 to 70 l/min	Connection Type	G1 thread - Single Port
Filter Element Type	05QI (Quantumfiber™)

Product resources

Compliance, Certifications & Safety

SAFETY-GLF-GLI-filter-series (PDF)

Literature and Reference Materials

BROCHURE-GLF-GLI-iProtect-filter-series (PDF)
