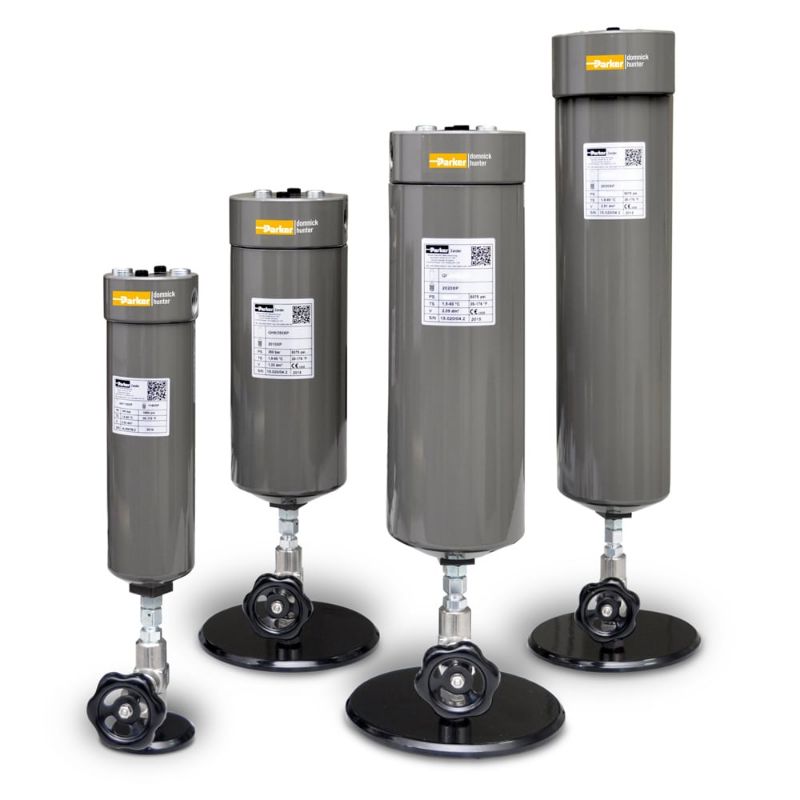

Parker GH5/350ZP - GH Series High Pressure Compressed Air Filter (for pressures up to 350 bar g)

High pressure filters for compressed air applications up to 350 bar g with optimized flow rates and improved housing design for high energy efficiency, maximum reliability and safe operation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GH5/350ZP

$1,657.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Application	Compressed Air and Nitrogen Gas Applications
Division	Gas Separation and Filtration Division EMEA	Weight	6 lb
Product Type	Compressed Air Filter	Width	3.1 inch
Operating Temperature	2 to 80 °C	Height	14 inch
Element Change Interval	12 months or 6000 hours	Filter Efficiency Rating	> 99.925 %
Product Series	GH350	Operating Pressure	5076.0
Specifications Met	PED Fluid Group II, TR	Residual Oil Content	0.5 mg/m³ - 0.5 ppm(w)
Pressure Differential	Saturated: < 370 mbar (< 5.4 psi)	Materials of Construction	Housing<br/>Aluminum, anodized<br/><br/>Seal<br/>NBR
Drain	Manual	Connection Type	½ inch BSPP
Flow Rate	501 m³/hr @ 350 barg (294 cfm @ 5076 psig)	Filter Type	Coalescing & Dry Particulate
Micron Rating	Down to 1 μm	Compatible Element	1070ZP
Operating Temperature	2 to 80°C (35 to 176°F)
