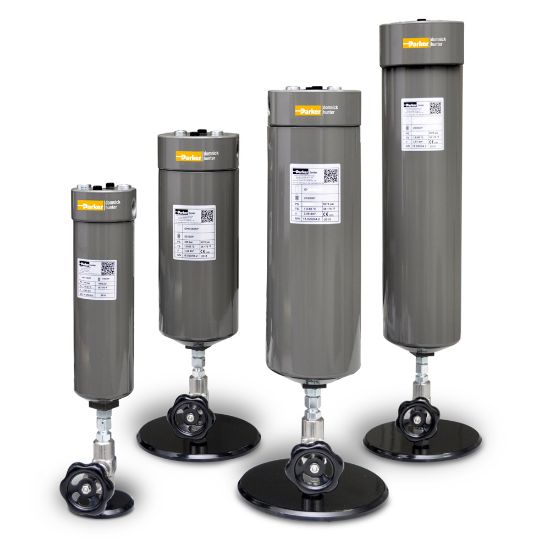

Parker GH13/100VOA - GH Series High Pressure Compressed Air Filter (for pressures up to 100 bar g)

High pressure filters for compressed air applications up to 100 bar g with optimized flow rates and improved housing design for high energy efficiency, maximum reliability and safe operation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GH13/100VOA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Application	Compressed Air and Nitrogen Gas Applications	Division	Gas Separation and Filtration Division EMEA
Product Type	Compressed Air Filter	Residual Oil Content	N/A
Element Change Interval	12 months or 6000 hours	Weight	39.2
Operating Temperature	2 to 80	Filter Efficiency Rating	> 90
Width	125.0	Height	910.0
Product Series	GH100	Operating Pressure	100.0 barg Maximum
Specifications Met	PED Fluid Group II, TR	Pressure Differential	Dry: < 300 mbar (< 4.35 psi)<br/>
Materials of Construction	Housing<br/>Steel<br/><br/>Seal<br/>NBR	Drain	None
Filter Type	Dry Particulate	Connection Type	1½ inch BSPP
Flow Rate	2787 m³/hr @ 100 barg (1640 cfm @ 1450 psig)	Micron Rating	Down to 3μm
Compatible Element	2050V	Operating Temperature	2 to 80°C (35 to 176°F)
