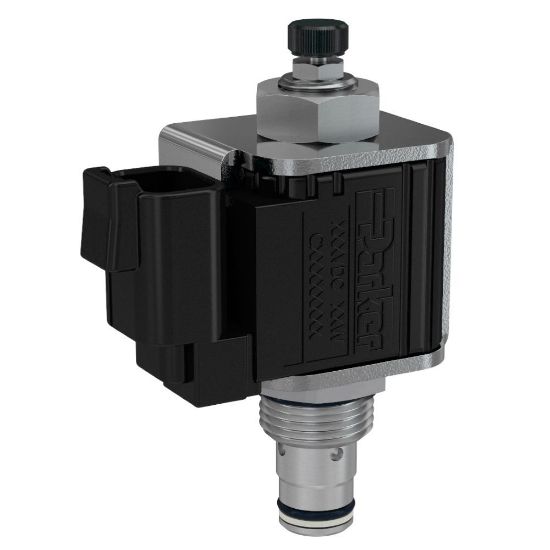

Parker GH02011V - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GH02011V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	4000	Division	Hydraulic Systems Division
Leak Rate	5	Flow Direction	Side to Nose (2-1)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Weight	0.19	Function	2-Way
Flow Rate	3	Override Functionality	n/a
Maximum Flow Rate	3	Cavity Size	C08-2
Wire Mesh Screen Included	Yes	Coil Nut Tightening Torque	3
Maximum Inlet Pressure Rating	4000	Adjustment Mechanism	Knob Adjustment
Actuation Type	Electrical, Manual	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-15 to +400
Maximum Operating Temperature	+400	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C)
Free Reverse Flow	No	Configuration	Normally Closed w/Flow Control Adjustment
Response Time	20	Installation Torque	20
Seal Material	Fluorocarbon	Flow Rate	3 GAL/MIN, 11 L/MIN
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	Yes
Configuration	Normally Closed w/Flow Control Adjustment	Maximum Inlet Pressure Rating	4000 PSI, 285 BAR
