Parker G01098Q - Replacement Elements - 22PD-32PD Series

The replacement elements of the Parker 22PD-32PD high pressure duplex filter series make use of high quality Microglass glasfibre filter materials.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. G01098Q

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Pressure Differential	20	Division	Hydraulic & Industrial Process Filtration Division EMEA
Filter Element Type	Disposable element	Diameter	93 mm
Length	319 mm	Micron Rating	10 µm
Filter Element Type	10Q Microglass	Size	Length 2
For Use With	32PD Housing	Seal Material	Nitrile
UOM	EA	Efficiency βx(C) ≥ 200	10 µ
Media Type	Microglass	Collapse Pressure (bar)	20 bar
Media	10 Micron Absolute	Pkg Qty	1
Seals	NBR: Nitrile	Collapse Pressure (psi)	290 psi
Collapse Pressure (psi)	290 psi	Glue Endcaps Adhesive	Epoxy

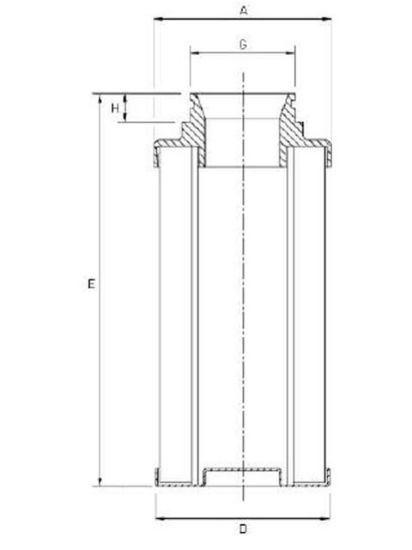

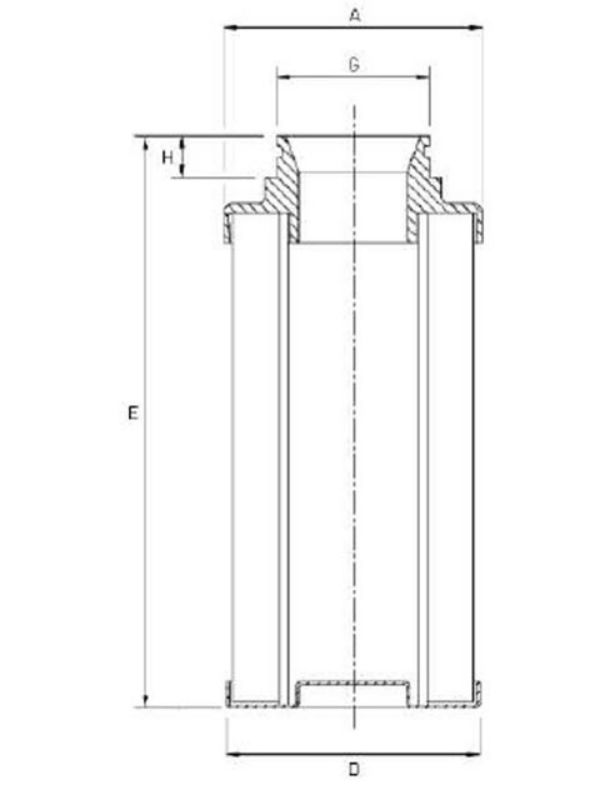

A Dimension	3.76 in (95.5 mm)	D Dimension	3.76 in (95.5 mm)
Top Endcap Material	Glass reinforced nylon	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides
B Dimension	2.48 in (63 mm)	Inner Support Cylinder Material	Mild steel tin plated
Series	ParFit	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile	Media Type	Microglass
Efficiency βx(C) ≥ 200	10 µ	Bottom Endcap Material	Mild steel tin plated
H Dimension	2.48 in (63 mm)	Media	10 Micron Absolute
Parker Group	Filtration	Glue Side Seam Adhesive	Epoxy
E Dimension	12.579 in (319.5 mm)	Collapse Pressure (bar)	20 bar
I Dimension	0.059 in (1.5 mm)
