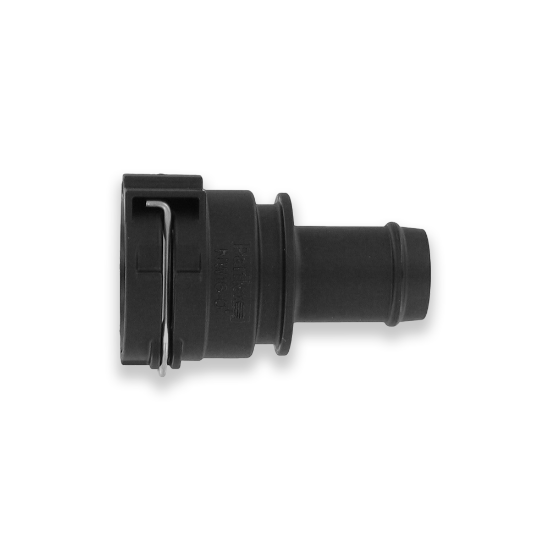

Parker FVDA16HB-0750 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FVDA16HB-0750

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	125.0	Product Type	Hose Fitting
Length	2.27	Configuration	Barb to Female VDA
Division	Parflex Division	For Fluid Type	Coolants (Water Based)
Materials of Construction	High Performance Glass Filled Polyamide	Minimum Operating Temperature	-40.0
Brand	Parker	Division	Parflex Division
Connection 1 Size	0.630	Product Series	Rubber Hose, GPH Hose
Application	Fluid Transfer	Shape	Straight
Connection Type	Female VDA, Beaded Barb	Size	0.750
Fitting Type	Female VDA / Beaded Barb	Notes	Male VDA Size: 0.630" / 16 mm
Product Style	FVDA	Seal Material	EPDM (O-Ring)
Maximum Operating Temperature	212.0	Vacuum Pressure Rating	n/a
Connection Size	n/a	Connection 2 Size	0.750
Industry	Transportation	Connection 1 Hose Inside Diameter	0.629" (I.D.)
Shape	Straight	Product Style	FVDA
Length (inch)	2.27"
