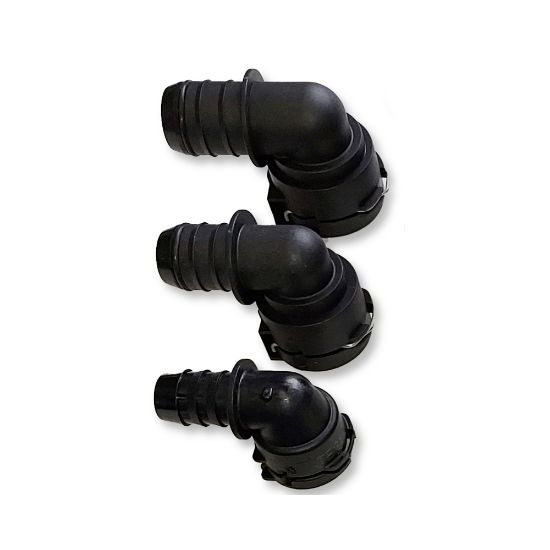

Parker FVDA121490 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FVDA121490

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Fitting Type	Barb / Beaded Barb / Mini Barb	Shape	Elbow 90°
For Fluid Type	Coolants (Water Based)	Application	Fluid Transfer
Brand	Parker	Maximum Operating Pressure	125
Materials of Construction	High Performance Glass Filled Polyamide	Division	Parflex Division
Length	1.22	Connection Size	n/a
Configuration	Hose to VDA	Vacuum Pressure Rating	n/a
Industry	Transportation	Product Style	VDA
Minimum Operating Temperature	-40	Connection 1 Size	0.472 inch Hose I.D.
Maximum Operating Temperature	212	Size	-14
Seal Material	EPDM (O-Ring)	Notes	Socket Size: 0.472" / 12 mm
Product Type	Hose Fitting	Product Series	ECH
Division	Parflex Division	Connection Type	Push-to-Connect
Shape	Elbow 90°	Connection 1 Hose Inside Diameter	0.472" (I.D.)
Length (inch)	1.22"	Product Style	FVDA
