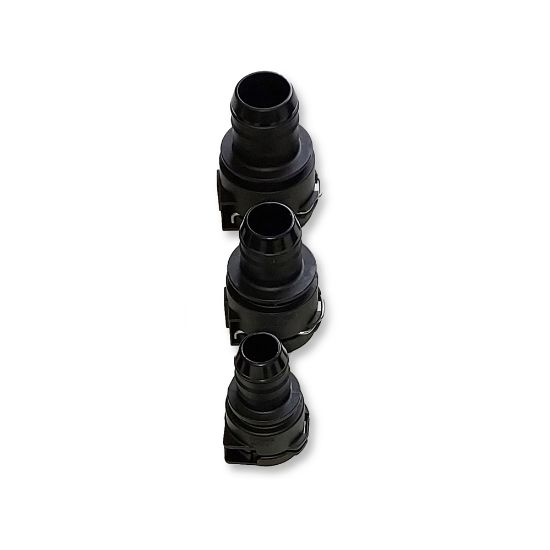

Parker FVDA121400 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FVDA121400

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	2.10	Product Style	VDA
Shape	Straight	Application	Fluid Transfer
Fitting Type	Barb / Beaded Barb / Mini Barb	Maximum Operating Temperature	212
Seal Material	EPDM (O-Ring)	Size	-14
Connection Size	n/a	Vacuum Pressure Rating	n/a
Configuration	Hose to VDA	Industry	Transportation
Connection Type	Push-to-Connect	Division	Parflex Division
Minimum Operating Temperature	-40	Connection 1 Size	0.472 inch Hose I.D.
Division	Parflex Division	For Fluid Type	Coolants (Water Based)
Maximum Operating Pressure	125	Materials of Construction	High Performance Glass Filled Polyamide
Brand	Parker	Product Series	ECH
Product Type	Hose Fitting	Notes	Socket Size: 0.472" / 12 mm
Connection 1 Hose Inside Diameter	0.472" (I.D.)	Shape	Straight
Length (inch)	2.10"	Product Style	FVDA
