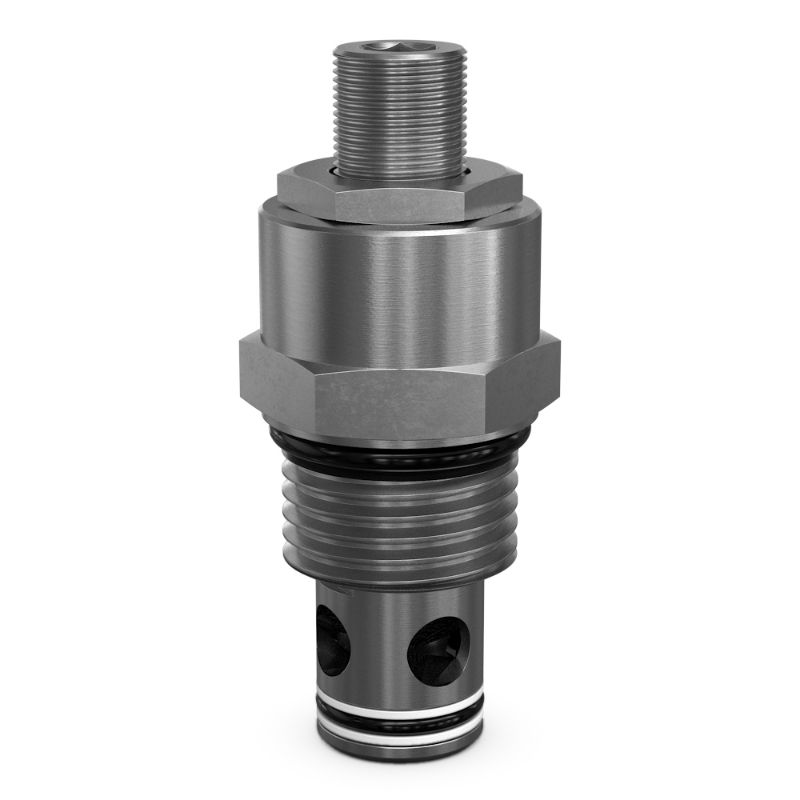

Parker FV101KV - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FV101KV

$56.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	2-Way	Actuation Type	Manual
Connection Size	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Flow Rate	45 L/min	Body Material	n/a
Seal Material	Fluorocarbon	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Operating Temperature	+400 °F
Maximum Operating Pressure	210 bar	Maximum Flow Rate	12 Gal/min
Operation Type	Manually operated	Weight	0.5 lb
Installation Torque	16 lb-ft	Operating Temperature	-15 to +400 °F
Cavity Size	C10-2	Minimum Operating Temperature	-26 °C
Adjustment Mechanism	Knob	Needle Type	Coarse
Configuration	Needle w/Reverse Check	Maximum Inlet Pressure Rating	3000 psi
Connection Type	n/a	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Needle Type	Coarse	Seal Material	Fluorocarbon
Flow Rate	12 GAL/MIN, 45 L/MIN	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Adjustment Mechanism	Knob
