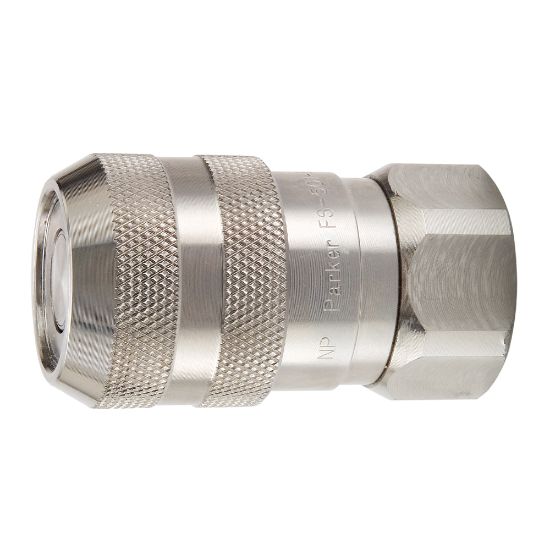

Parker FS-251-4FB - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FS-251-4FB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Valve Type	Non-spill
Product Type	Push to Connect	Application	Fluid Transfer
Flow Rate	3 Gal/min	Maximum Operating Pressure	2000 psi
Hex Size	1 inch	Minimum Operating Temperature	-15 °F
Body Material	Stainless Steel 316	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Connection Type	Female BSPP
Body Size (inch)	1/4
