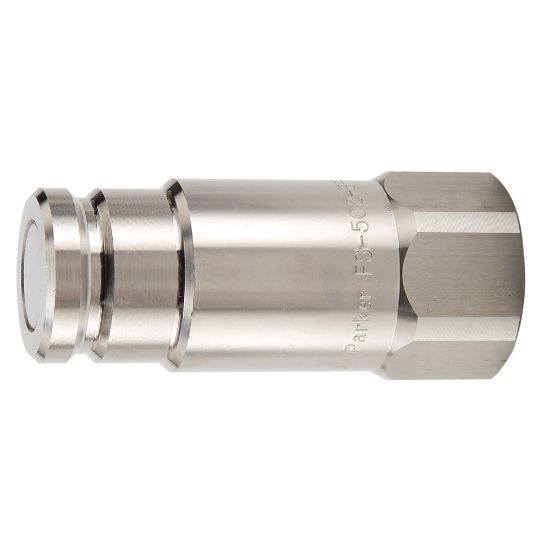

Parker FS-1002-16FP-E5 - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FS-1002-16FP-E5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	2000 psi	Valve Type	Non-spill
Hex Size	1.87 inch	Minimum Operating Temperature	-65 °F
Maximum Operating Temperature	300 °F	Flow Rate	50 Gal/min
Seal Material	Ethylene Propylene	Division	Quick Coupling Division
Body Material	Stainless Steel 316	Application	Fluid Transfer
Product Type	Push to Connect	Body Size (inch)	1
Connection Type	Female NPT	Connection Thread Size (inch)	1 - 11 1/2
Coupling Half	Male Nipple
