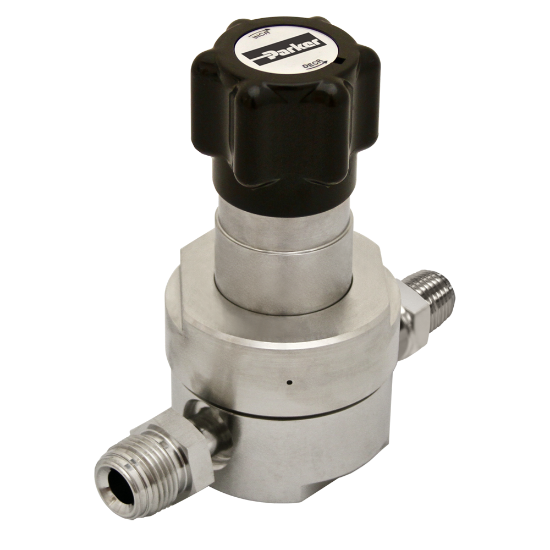

Parker FR1415LS5K2PFS6MM - FR1400

The FR1400 is an ultrahigh purity, tied diaphragm, regulator for high pressure gas delivery in semiconductor and other clean processes. Capable of high flow, it is an excellent choice for cylinder or point of use bulk and specialty gas applications

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FR1415LS5K2PFS6MM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	3/8" Face Seal	Internal Leak Rate	4 x 10-8 scc/sec He
Poppet Material	Hastelloy C-22®	Port Connection	Male, Male
Number of Ports	2	Flow Coefficient	0.5
Diaphragm Material	Hastelloy C-22®	Outlet Pressure Rating	15-150 psig
Burst Pressure	9,000 psig	Division	Veriflo Division
Seat Retainer Material	316L SS, Hastelloy C-22®	Seat Material	PCTFE
Proof Pressure	4,500 psig	Body Material	316L Stainless Steel
Maximum Inlet Pressure Rating	300	External Leak Rate	2 x 10-10 scc/sec He
Body Material	316L Stainless Steel	Flow Coefficient (Cv)	0.5
Maximum Inlet Pressure (psig)	300	Seat Material	PCTFE
Outlet Pressure	15-150 psig	Number of Ports	2
Port Connection	Male, Male	Port Connection Type	3/8" Face Seal
